Parameters

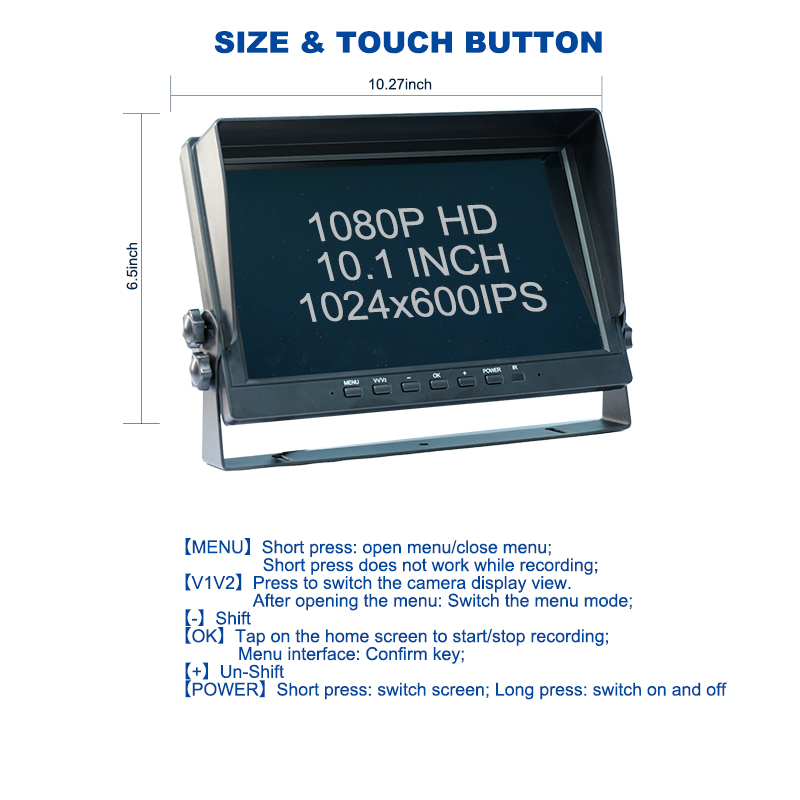

| Screen size: | 10.1inch |
| Resolution: | 1024*600 IPS |
| Power input: | 9-36V wide voltage |
| Working temperature: | -20℃~70℃ |
| Operation mode: | manual, remote control operation |
| Video input: | Video input |
| Storage format: | H.264, operation mode |
| Loop recording: | Supported |
| TV system: | PAL/NTSC |
| Angle: | 170° |
| Waterproof: | IP68 |
| TF card: | 16-256G(Class10) U1 high-speed card |

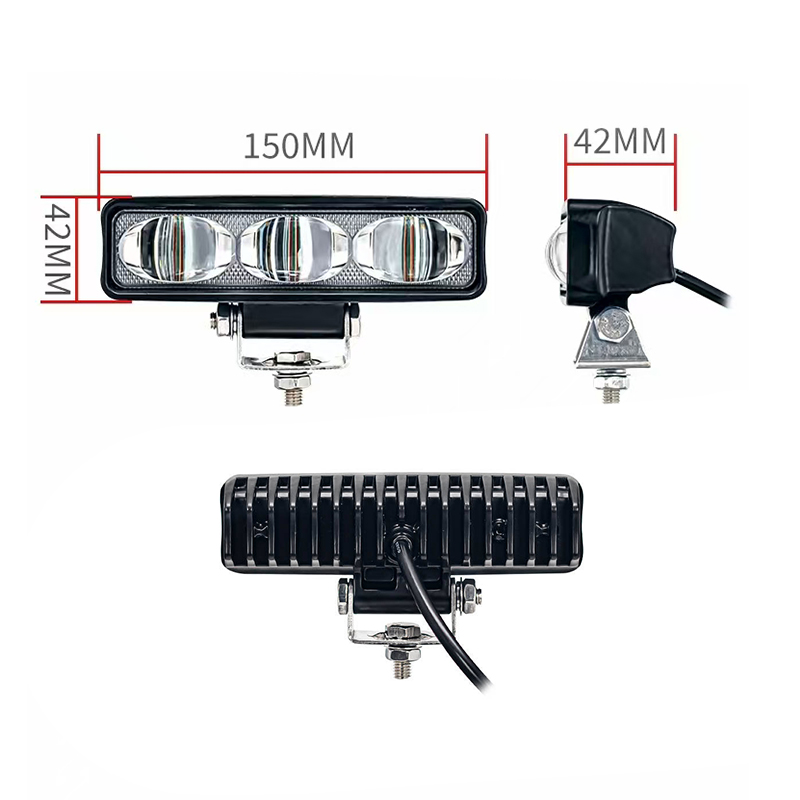

| Area Light Parameters | |
| Input voltage: | DC 10V–100V, rated power: 30W, rated current: 1.5A. |
| light wavelength: | Red light: 625nm–630nm; Blue light: 520nm–530nm |
| Waterproof rating: | IP67 |
| Light type: | linear beam; ratio of projection height to length: 1:2. |
| Lamp body material: | aluminum alloy housing; lens: acrylic; bracket: SUS201 stainless steel. |
| Operating temperature: | -25℃ ~ 85℃ |
| Anti-vibration level: | 10G/30G |
| Wiring: | AVSS, 0.5mm² 2-core sheathed cable; cable length: 560mm; connection mode: connector wiring; connector model: DT04-2P |
| Set weight | 6KG/set |
| Package size | 380*270*120MM |
