Specification
| Function | Waterproof, Night Vision, Split Screen, Parking Line, BSD System, Recording Function |
| Voltage | 12-24V |
| Type | Front Camera, Side View Camera, Reverse Camera, Monitor, Truck BSD Monitoring System, Backup Camera |
| Position | Combination Set, Front, Rear, Side |

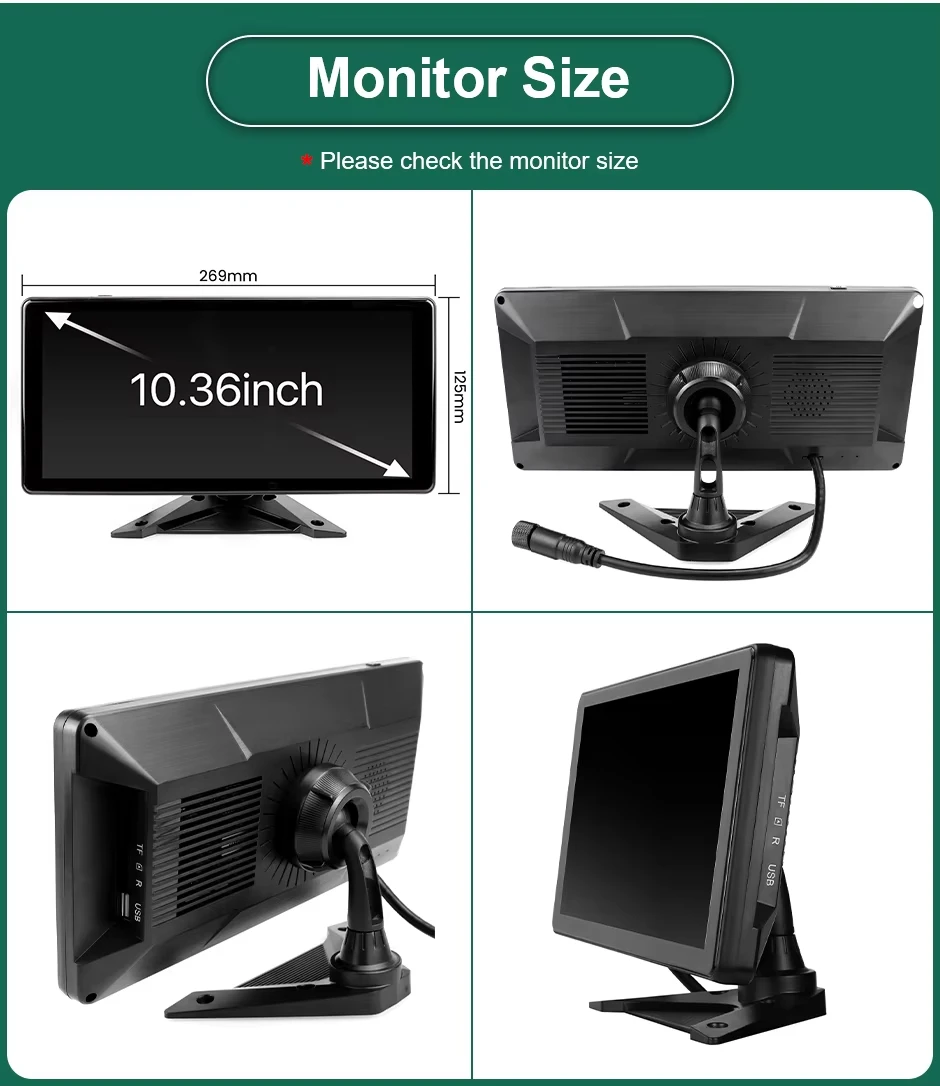

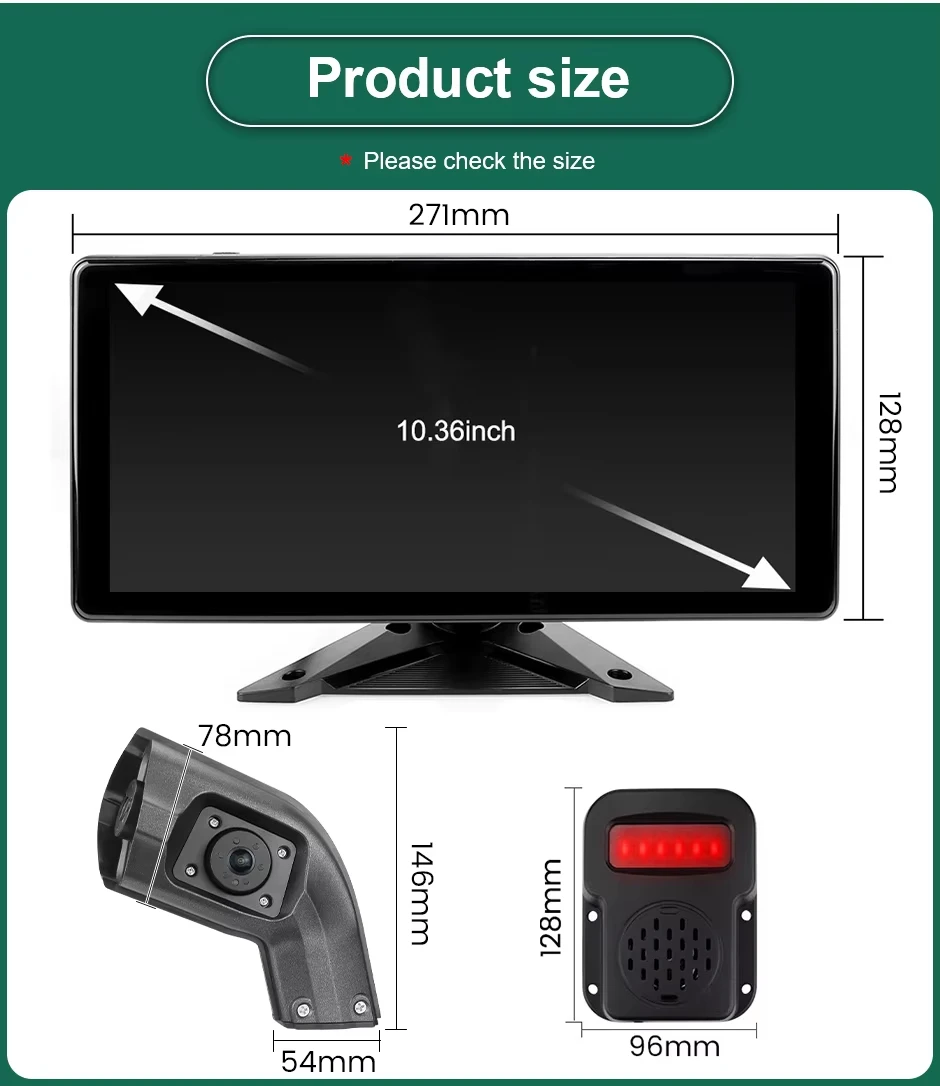

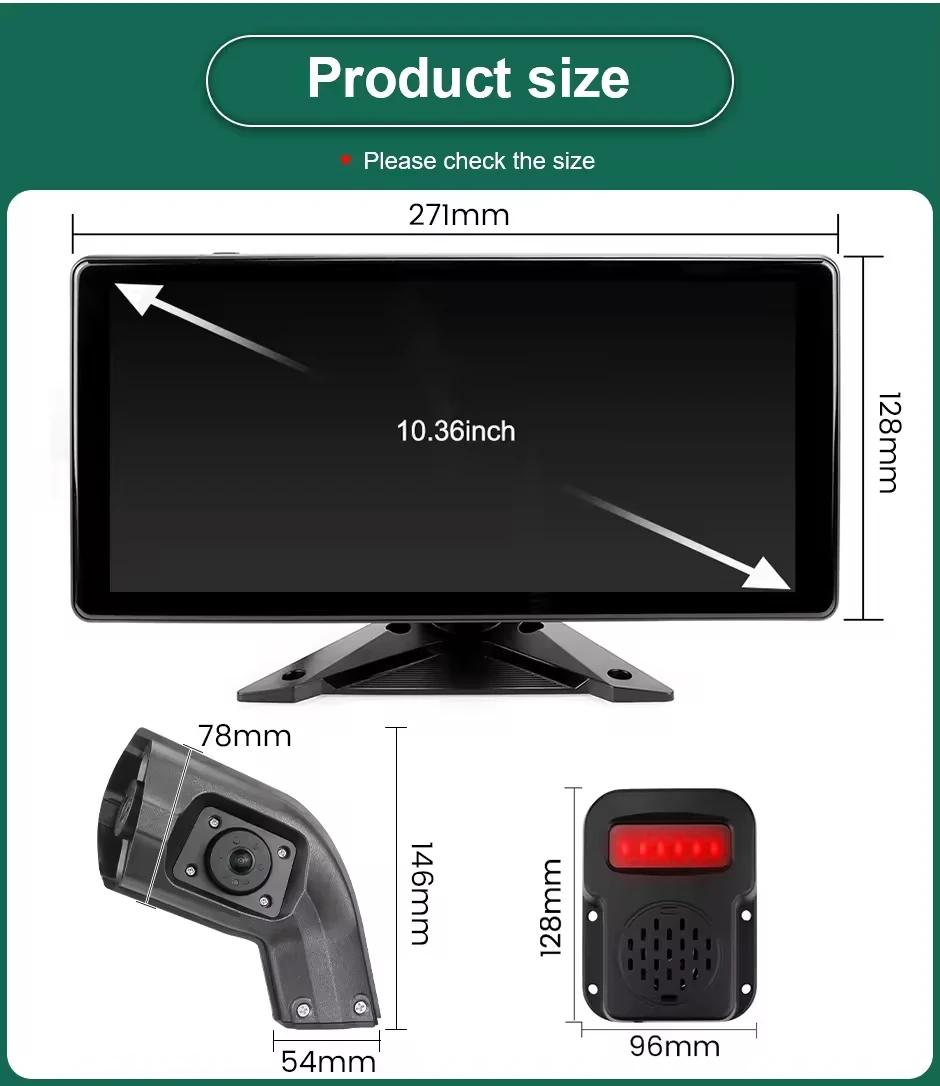

| Screen Size | 10.36 Inch |
| Camera Resolution | 720P, 1080P Optional |
| Power Supply | 12V, 24V, 36V Wide Voltage |

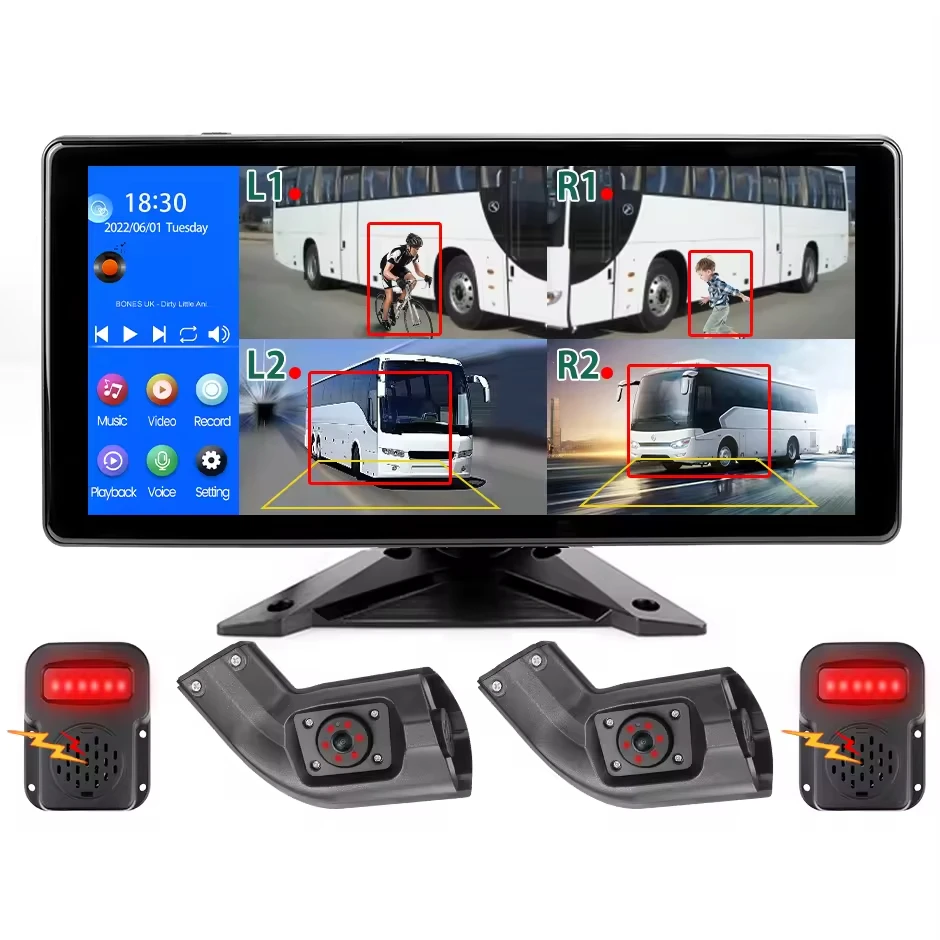

| Product Name | Truck / Bus 4CH BSD Blind Spot Monitoring System |
| TV System | PAL / NTSC Optional |
| Screen Type | IPS Touch Screen |
| Camera | IP68 Waterproof Backup Camera |
| Night Vision | Support IR Night Vision |
| Recording Function | Support DVR Loop Recording |

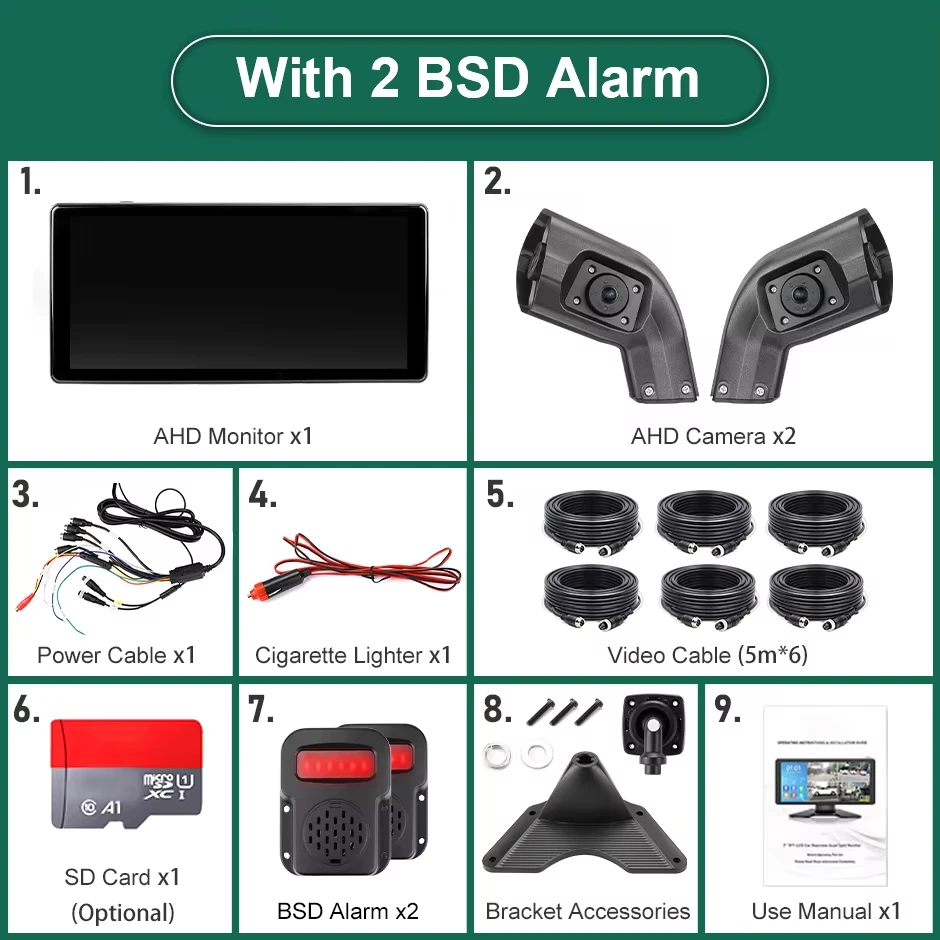

| Video Input | 4 Channels (Default with 2 Cameras) |
| Installation | Easy Installation |
Monitor Features
- Upgraded 4-channel BSD all-in-one system with AI intelligent detection for pedestrians & moving objects, vehicle blind spot warning to greatly improve driving safety. Built-in BSD speaker.

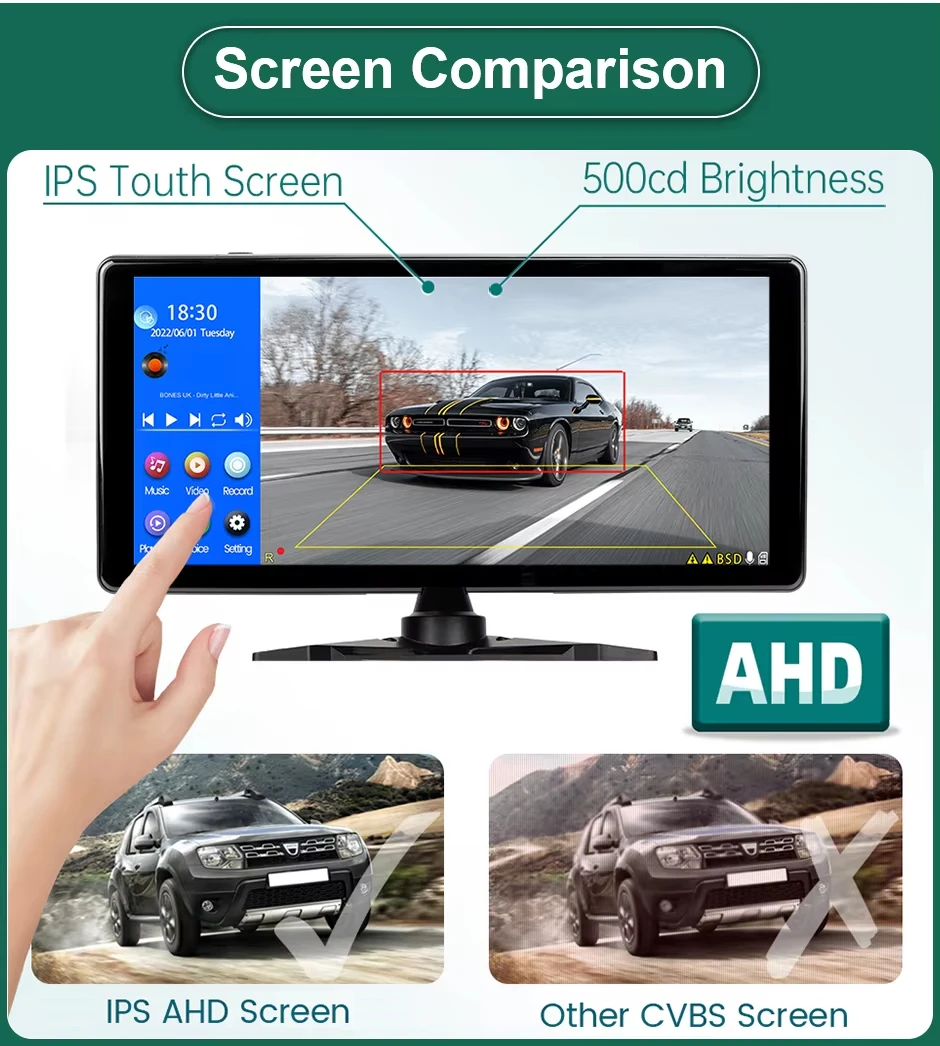

- 10.36-inch IPS touch screen, HD 500cd/m² high brightness, supports 4-channel split-screen display.
- 9-36V wide voltage input, ideal for trucks, buses, pickup trucks, work vehicles and heavy-duty vehicles.
- Supports AHD 720P/1080P cameras with 3D noise reduction and high-definition image restoration.

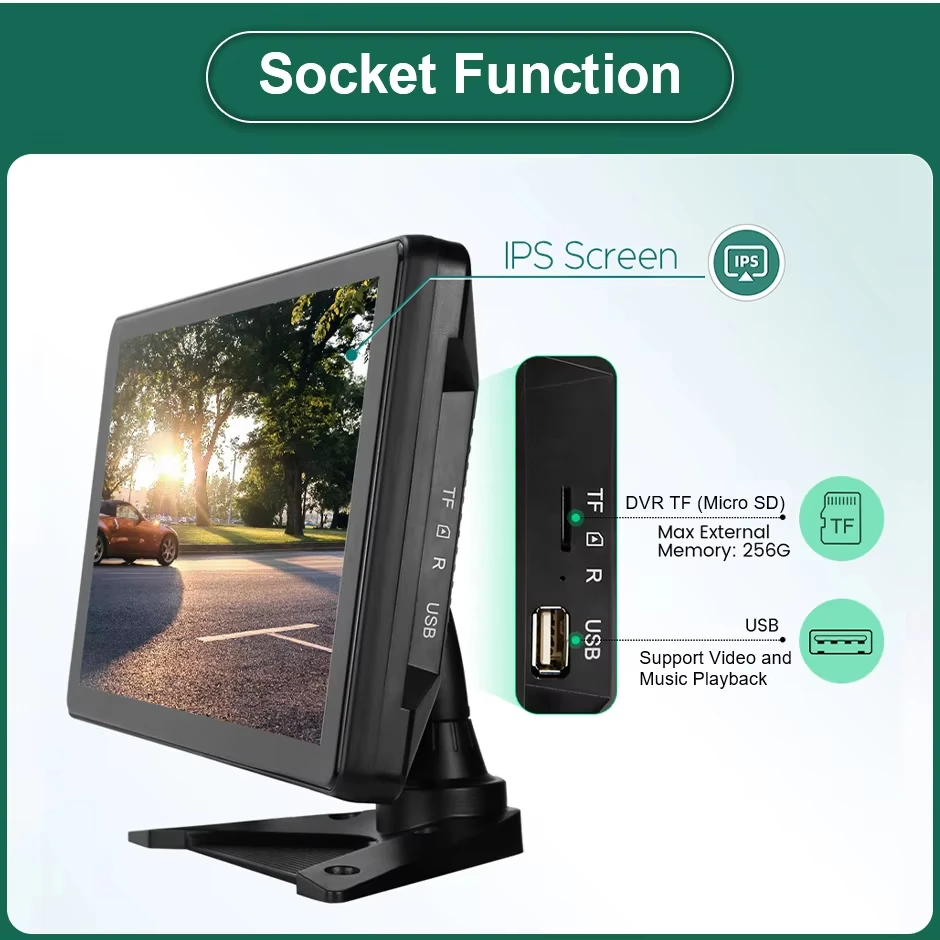

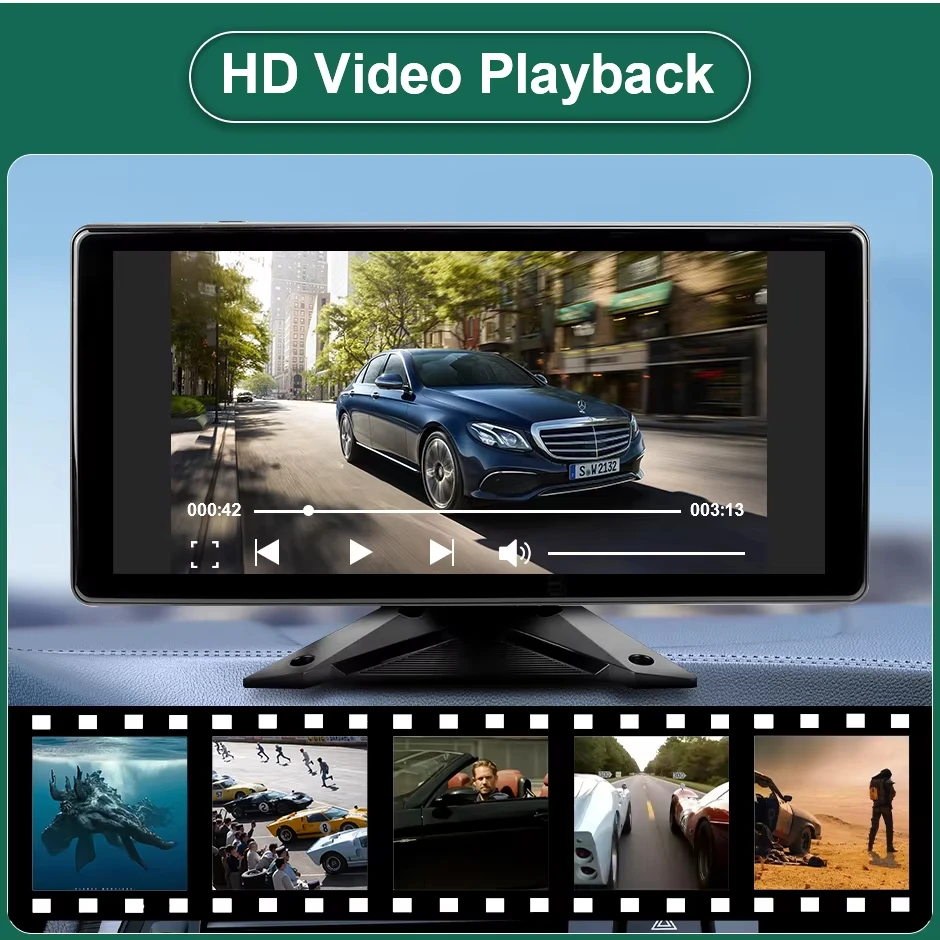

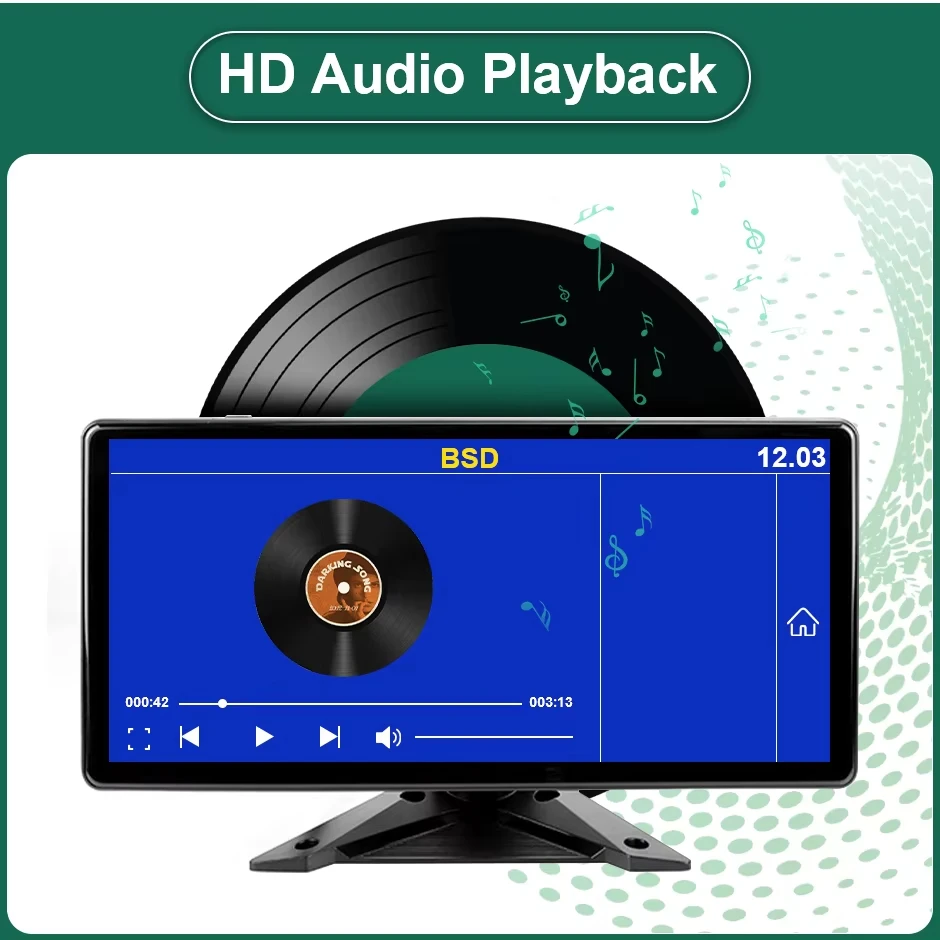

- DVR loop recording supports up to 256GB TF card, U disk playback, MP4 video & audio playback.
- Supports camera image mirroring, adjustable parking lines, screen saver, time/date display and customizable license plate.
- Customizable blind spot warning area for accurate safety alerts.

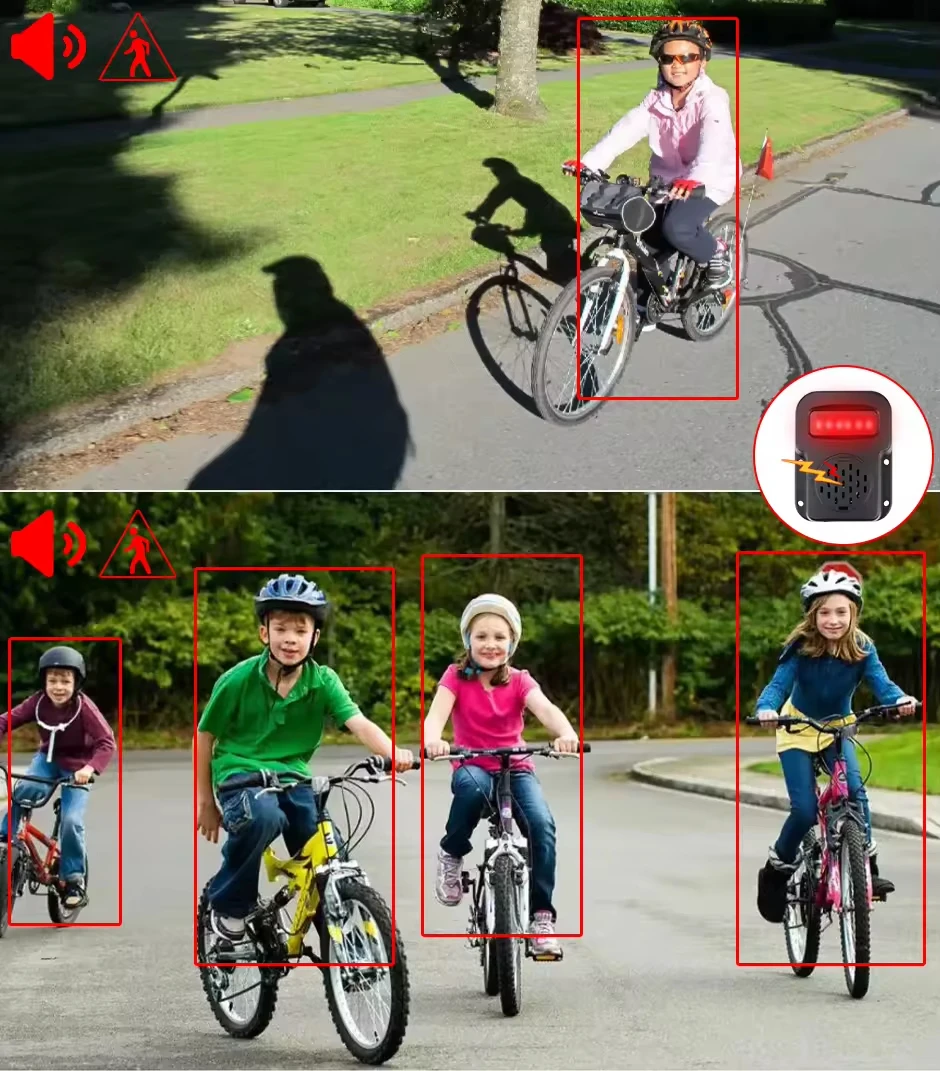

AI Smart Blind Spot Detection Alarm
- Built-in high-performance AI smart chip and AHD wide-dynamic sensor for real-time moving object detection.
- Visual warning: the screen frame turns red when pedestrians/vehicles enter the blind spot area.
- Audio warning: built-in speaker outputs clear alert tone when obstacles are detected.
Menu Settings

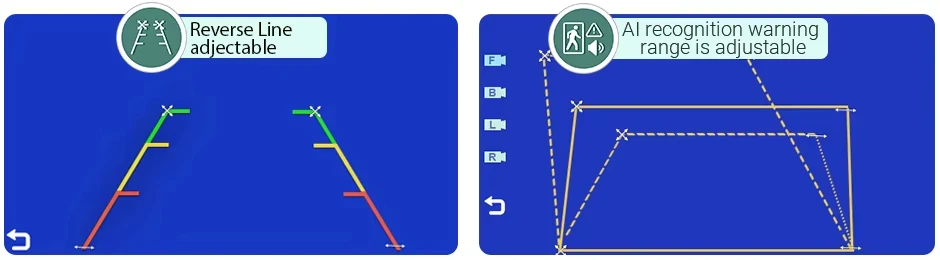

- Adjustable parking line range and customizable blind spot warning area.

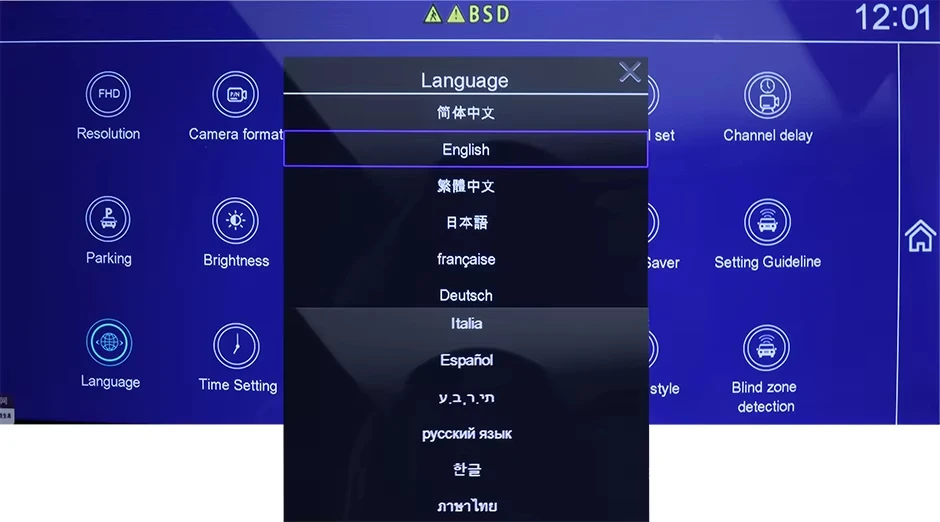

- 11 menu languages: English, Korean, Russian, Spanish, French, German, Italian, Japanese, Thai, Chinese, Hebrew.

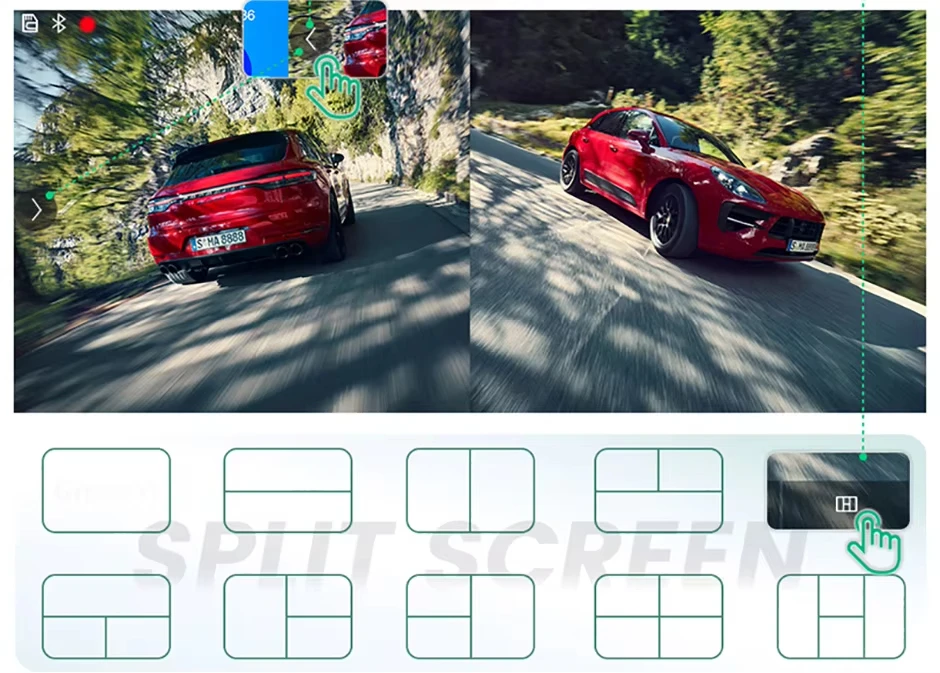

4 Channels Split Screen
- Supports simultaneous display of 2-4 screens.
- 10 DIY display modes for front, rear, left and right views.

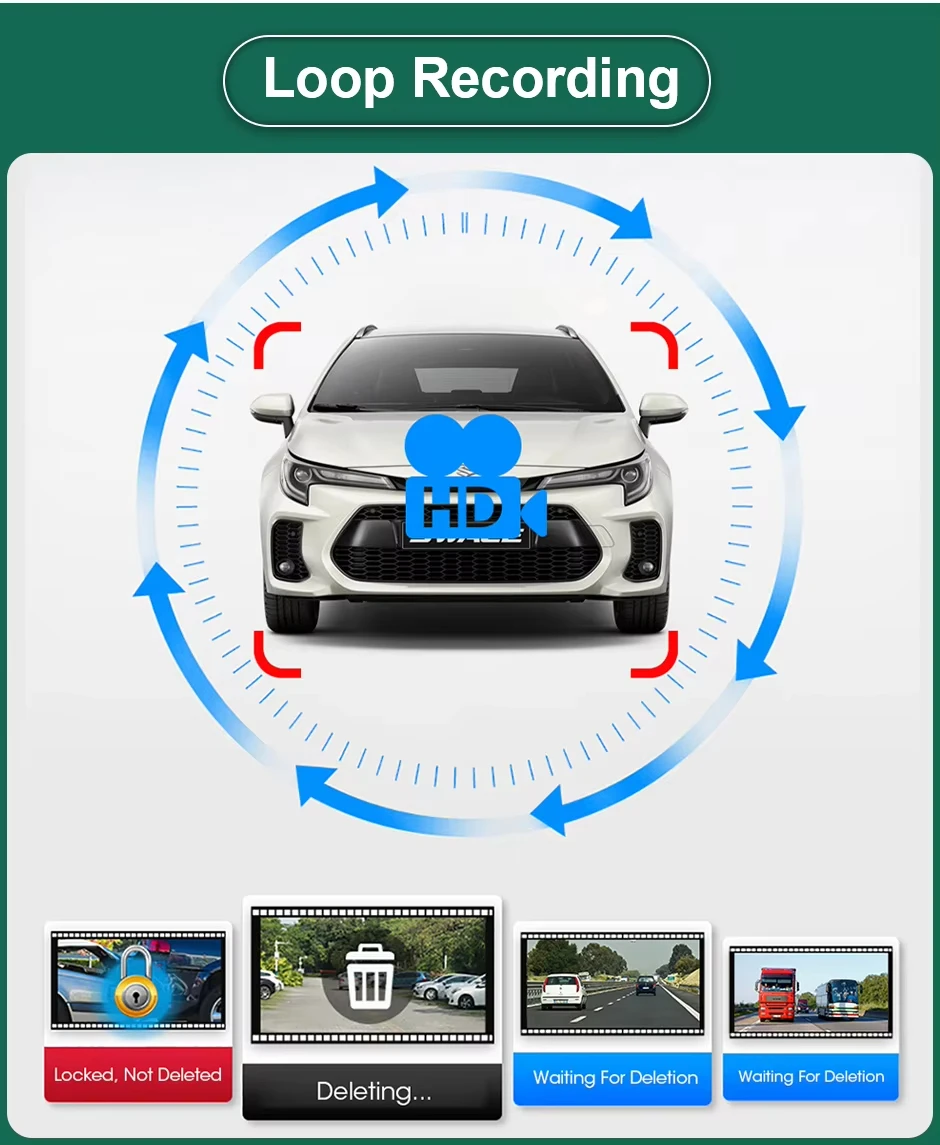

Loop Recording
- 24/7 parking monitoring & video playback, automatic loop recording when the memory card is full.
- Time-lapse recording for parking mode to save storage space.
- Advanced H.265 coding for smoother video and double storage efficiency.

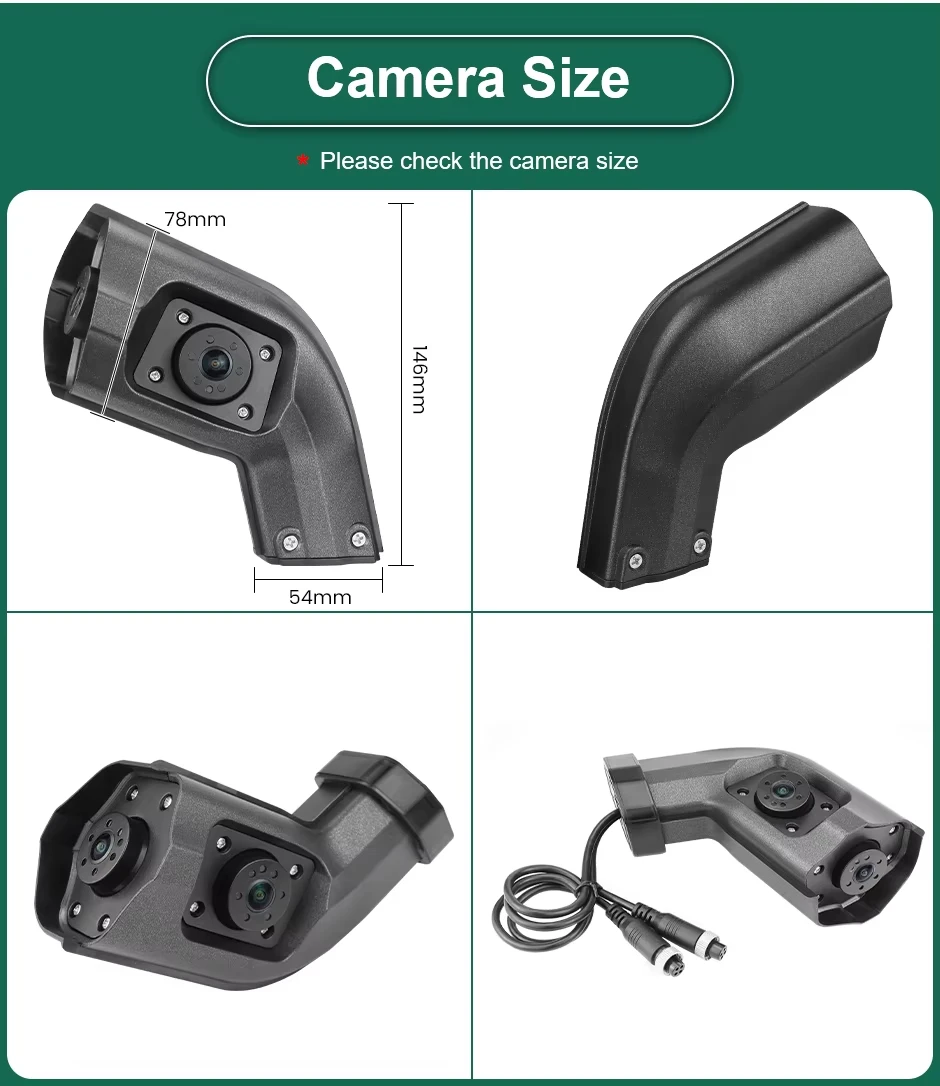

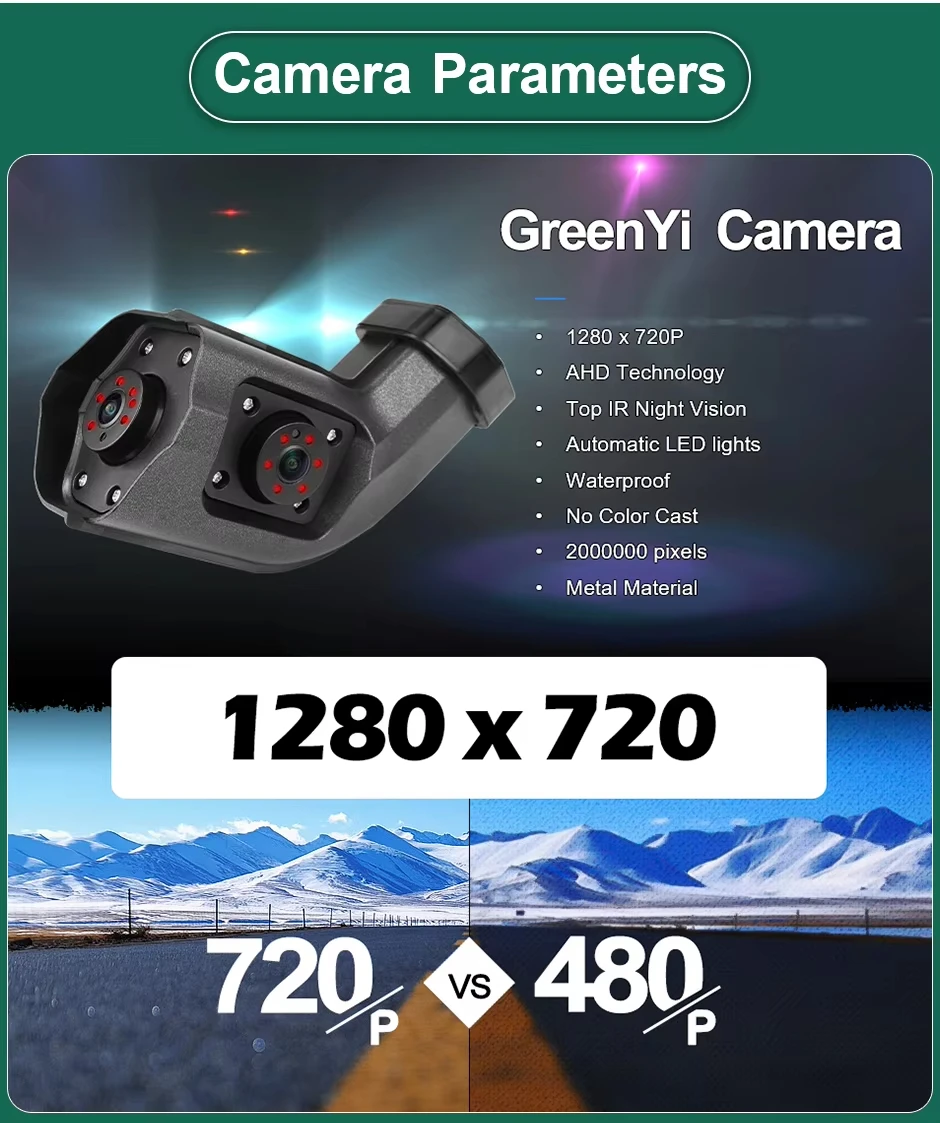

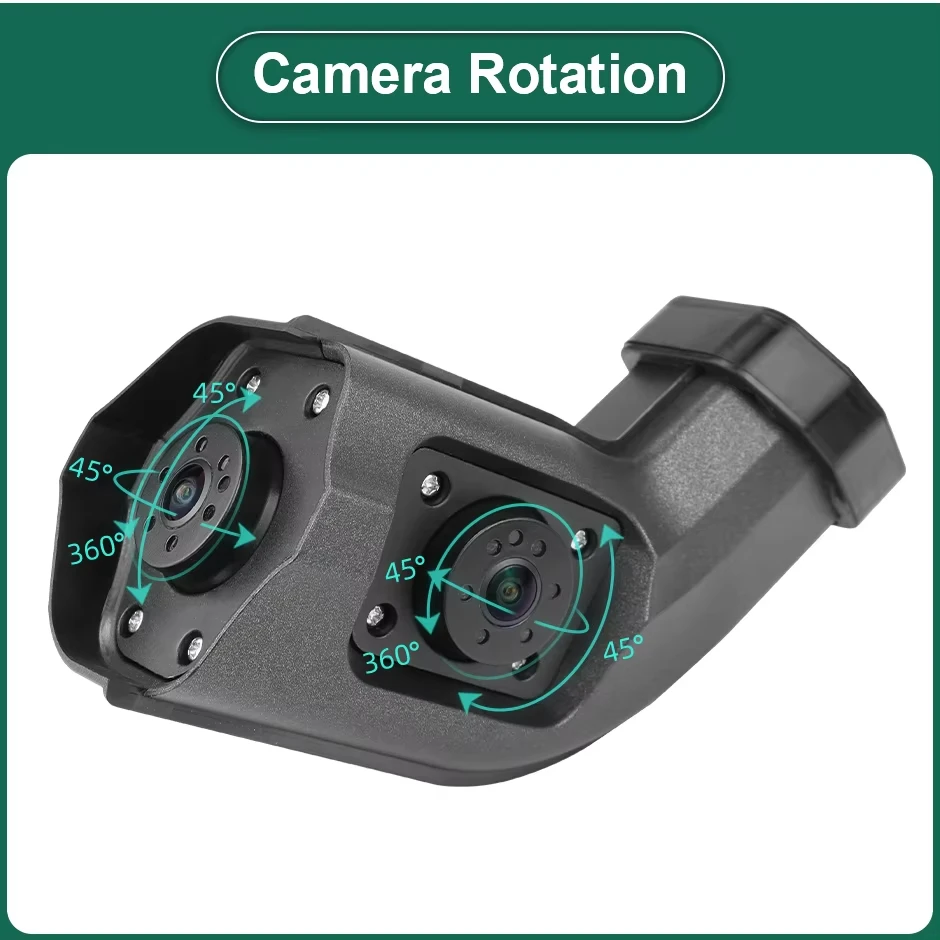

AHD 720P / 1080P Camera
- High-definition lens delivers clear footage day and night with excellent night vision.
- IP68 waterproof design for harsh working environments.
- Professional 5m aviation cables for left/right cameras, customizable length available.

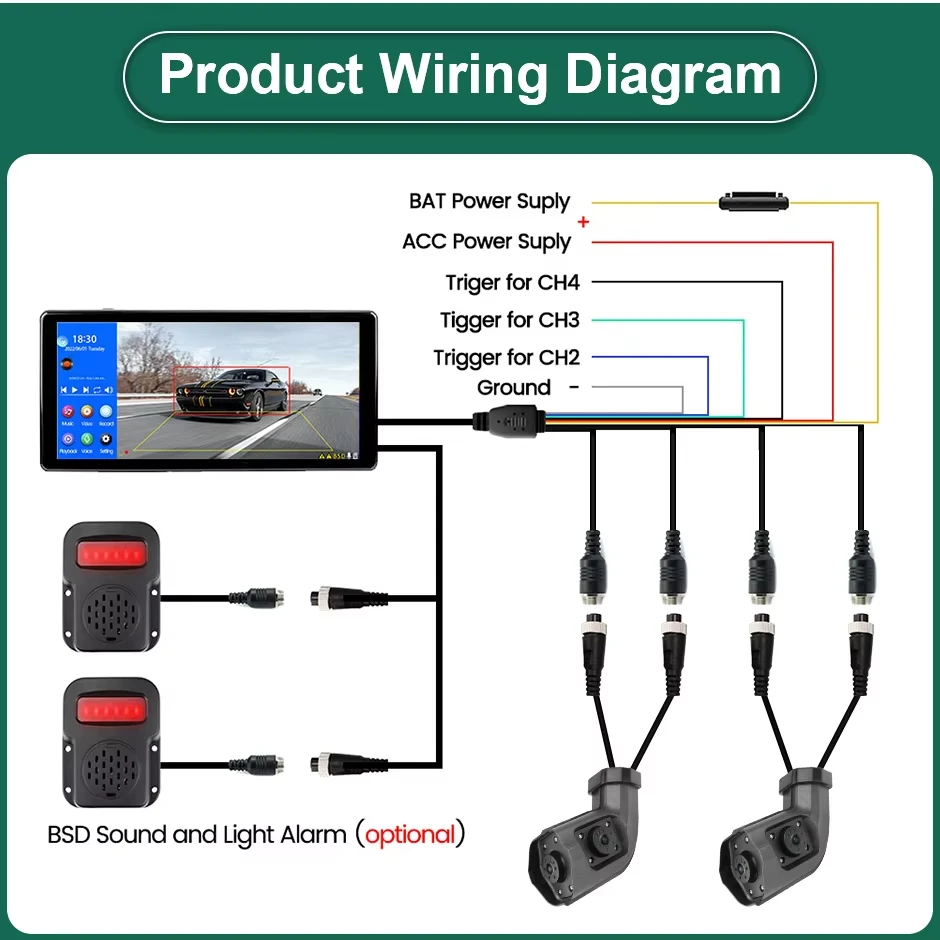

Wiring Diagram

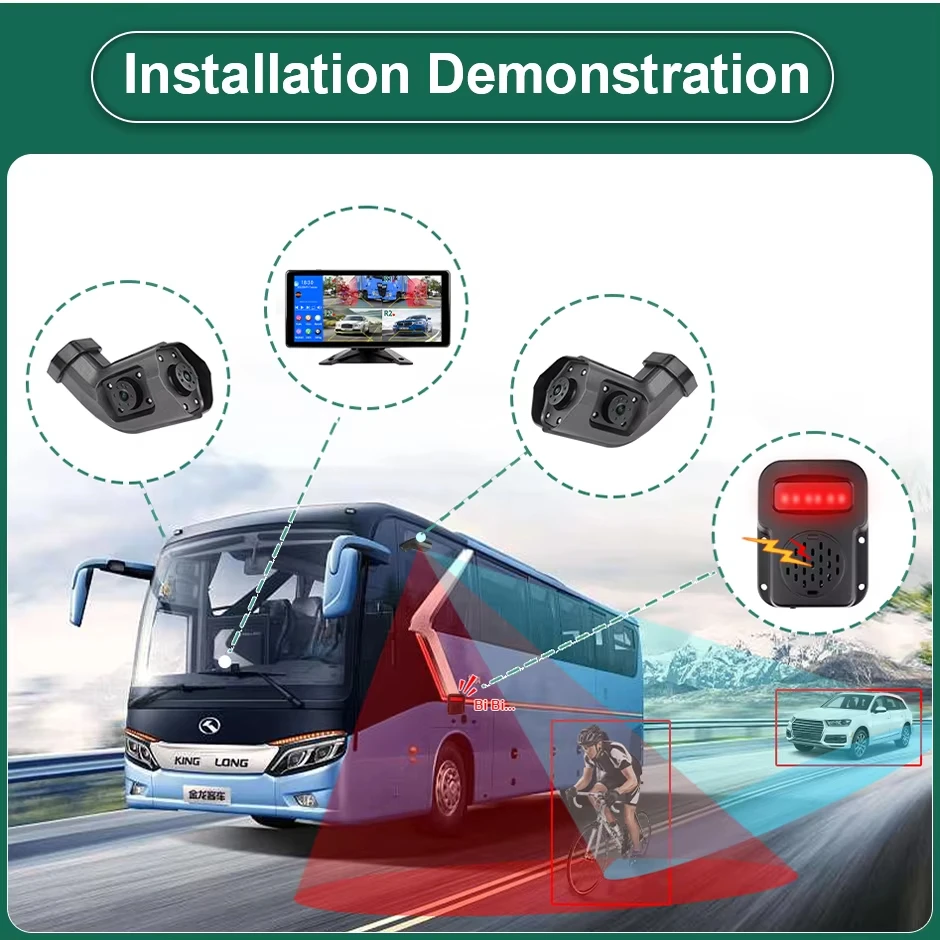

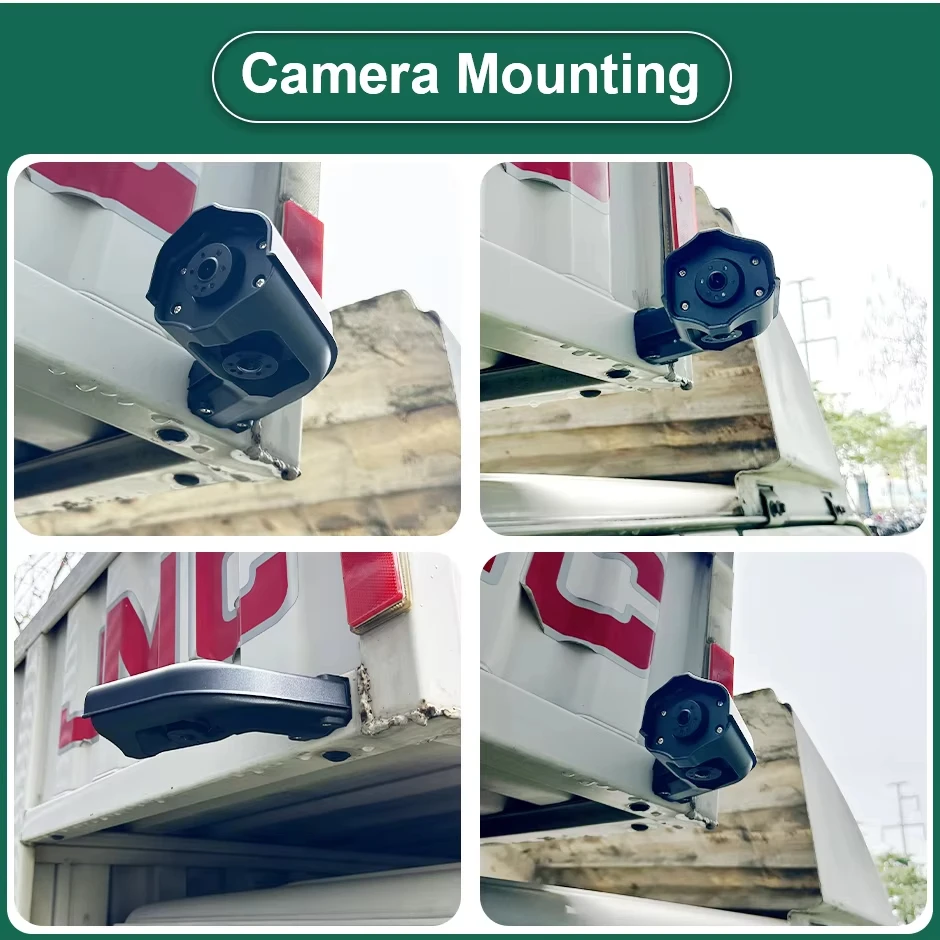

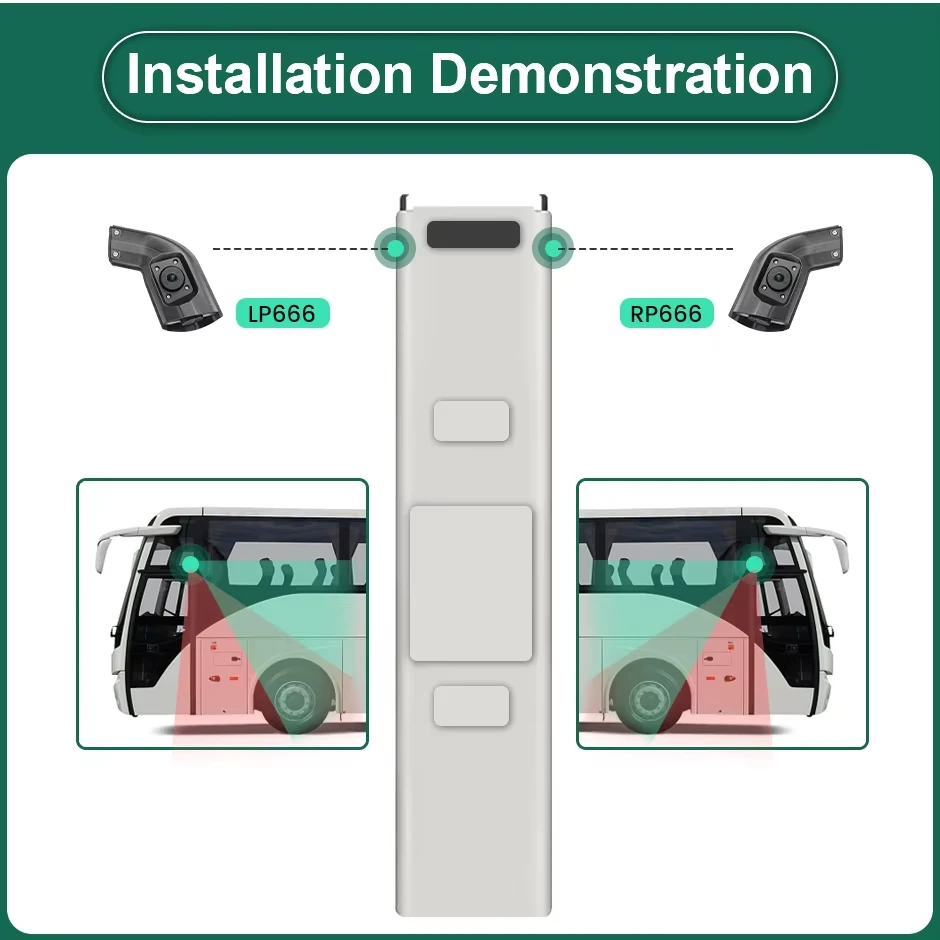

Install 4 AHD cameras on the front, rear, left and right sides of the vehicle and connect to the monitor. Enjoy real-time monitoring, AI alerts, driving assistance and parking protection.
