Specification
| Function | Waterproof, Night Vision, Parking Line, BSD System, Recording Function |
| Voltage | DC 12V-24V-36V |
| Type | Front Camera, Side View Camera, Reverse Camera, Monitor, Backup Camera, Truck BSD System |
| Position | Combination Set, Front, Rear, Side |
| Screen Size | 7 Inch IPS Touch Screen |
| Camera | AHD 1080P Waterproof AI Camera |
| TV System | PAL / NTSC Optional |
| Night Vision | Support Night Vision |
| Recording Function | Support |
| Picture Mode | 1/2/3/4-screen split |
| Color | Black |
| Installation | Easy Installation |
Product Features

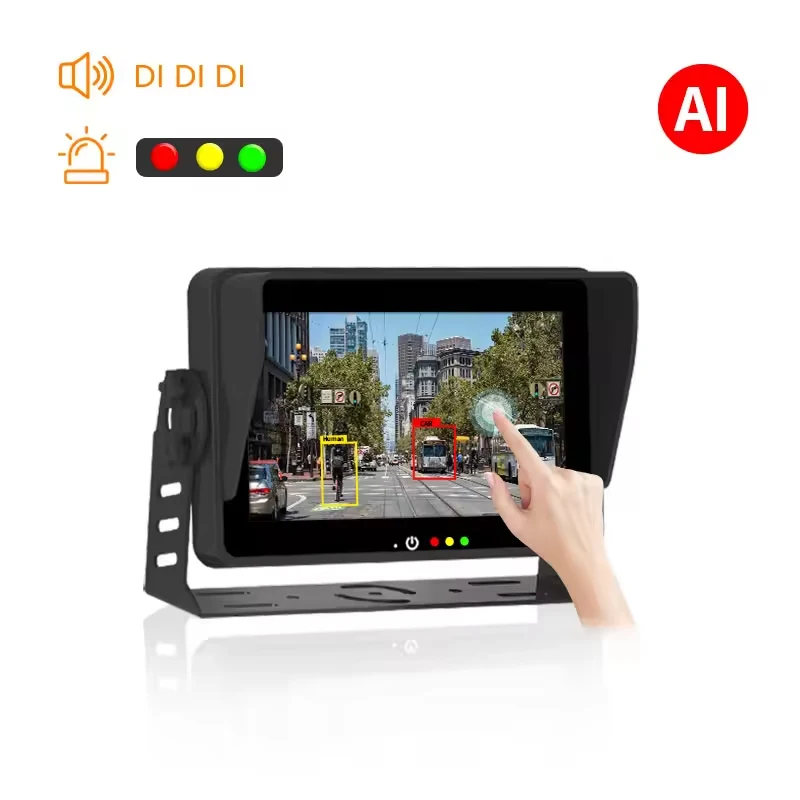

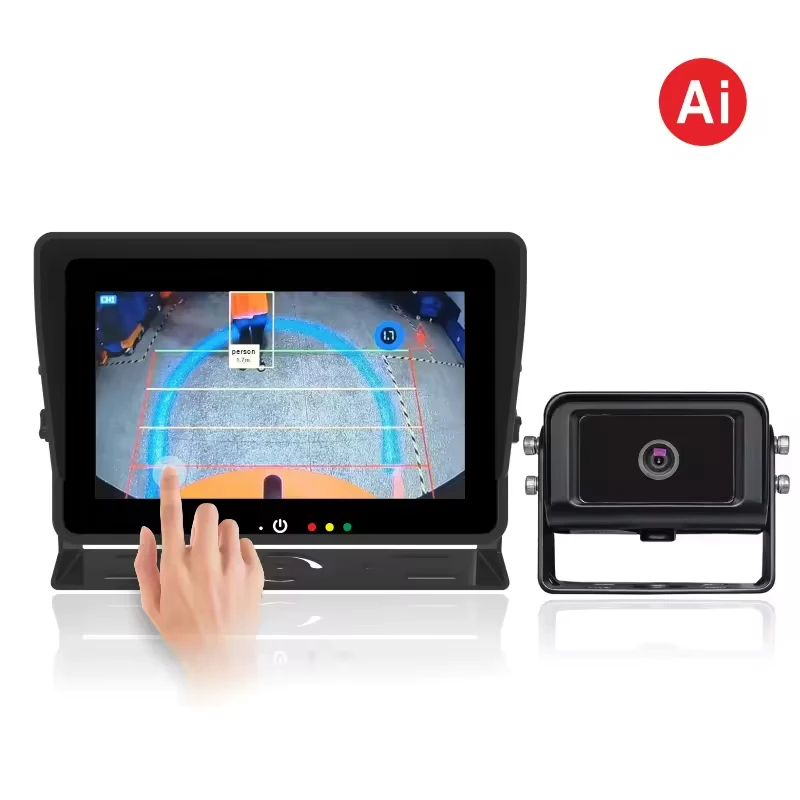

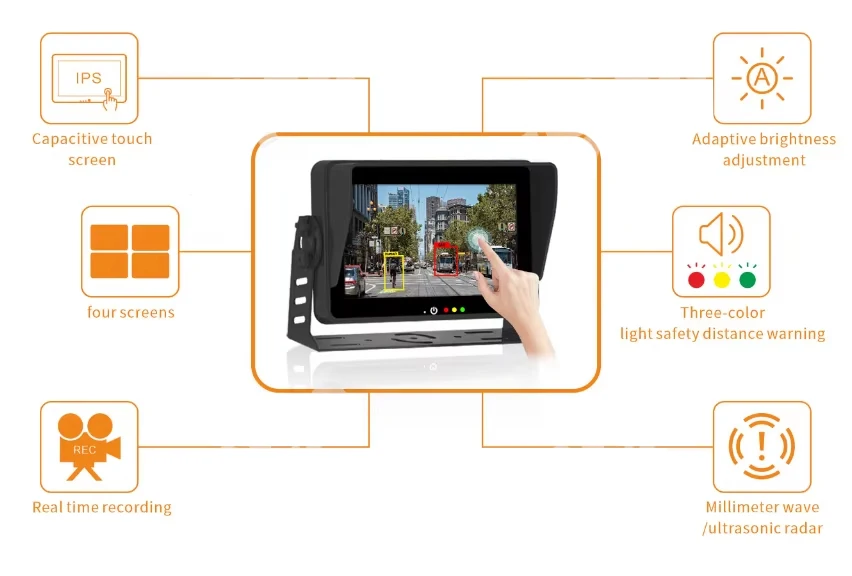

HD Touch Screen Display:
- 7-inch Touch Screen Display: Supports four video inputs, IPS display for true color representation and fast response times.
- Functions: Supports real-time recording and playback functions, with screen brightness that automatically adjusts according to ambient light.
- Hardware: Automotive-grade industrial DSP with built-in sound and light safety warnings.
- Operation: Fully touch-operated graphical menu for simple and easy use.
- Voltage Protection: DC 8~32V wide range working voltage, load dump pulse voltage protection, external power supply polarity reverse protection, and constant current and voltage protection for LEDs to prevent misuse and ensure product longevity.

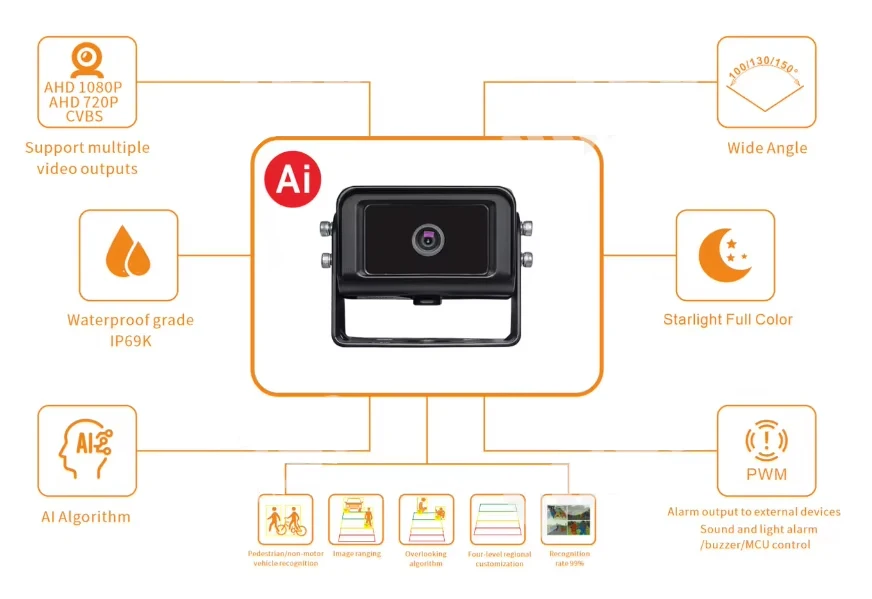

AI Human Shape Analysis Camera:
- Intelligent Recognition: Based on cloud-based intelligent recognition algorithms, it can learn and recognize specific human body movements.
- Application: Can accurately recognize humans in complex environments, primarily used for monitoring restricted areas for unauthorized entry or specific body movements in designated areas, and sending warning signals to the relevant monitoring system.
- Image Distance Measurement: 2 meters (customizable within 0-5 meters).
- Hardware Specifications: 100° wide-angle, automotive-grade DSP, 2 million high-definition pixels, IP69K waterproof rating, cold-resistant and waterproof signal tail cable.
