Specification
| Function | Waterproof, NIGHT VIEW, Parking Line |
| Voltage | 12-24v |
| Type | Reverse Camera, Monitor, Backup camera, Front Camera, side view camera |
| Position | Combination Set, Front, Rear, Side |
| Screen Size | 7.0 inch |
| Camera Resolution | 720P, 1080P, CVBS |
| Power Supply | 12V, 24V, 36V |
| Product name | 7 Inch Reversing System Kit For Truck |
| Screen Type | TFT-LCD |
| TV system | NTSC PAL (Option) |
| Camera | Waterproof IP68 Backup Camera |
| Night vision | Yes |
| Color | Black |
| Installation | Easy Installation |
| Storage Temperature | -30℃~81℃ |
| Connector | 4 PIN Connector/RCA Connector Optional |
Product Description

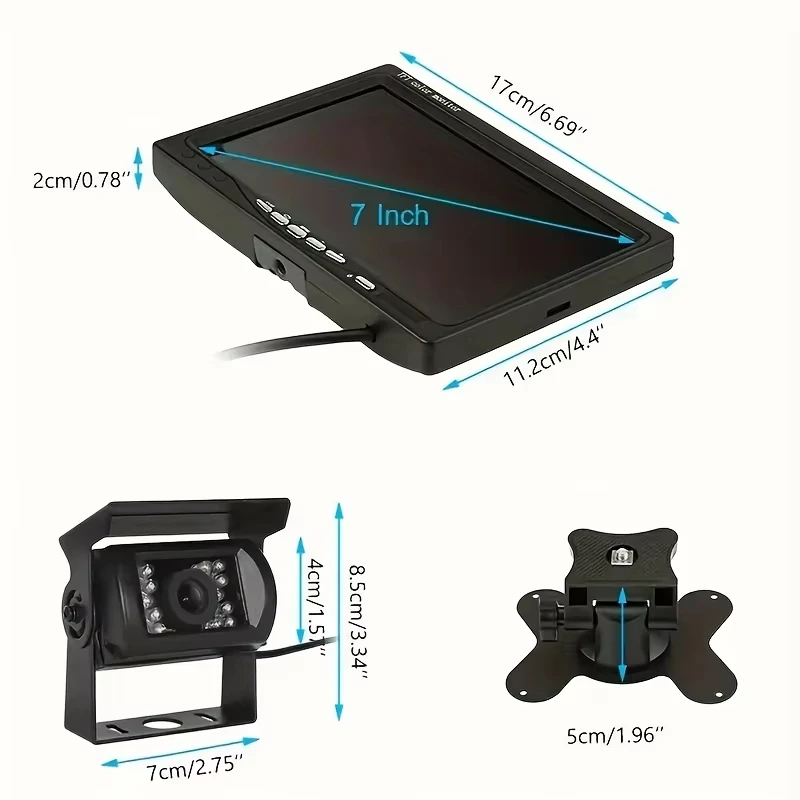

Size: 7 inch
Displays: TFT-LCD
Resolution: 800 (H) × 480 (V)
Power: ≤ 2W. Ultra-low power consumption, to prevent over heat
Video Input: AV1/AV2 video input
AV2 VCD / DVD video output signal (system default)
AV1 connect reversing camera (automatically switch to reversing)
Signal format: PAL / NTSC / AUTO. Compatible with all signal formats
Contrast: 300:1. A clear contrast
Working Voltage: DC 12VCamera’s Features:

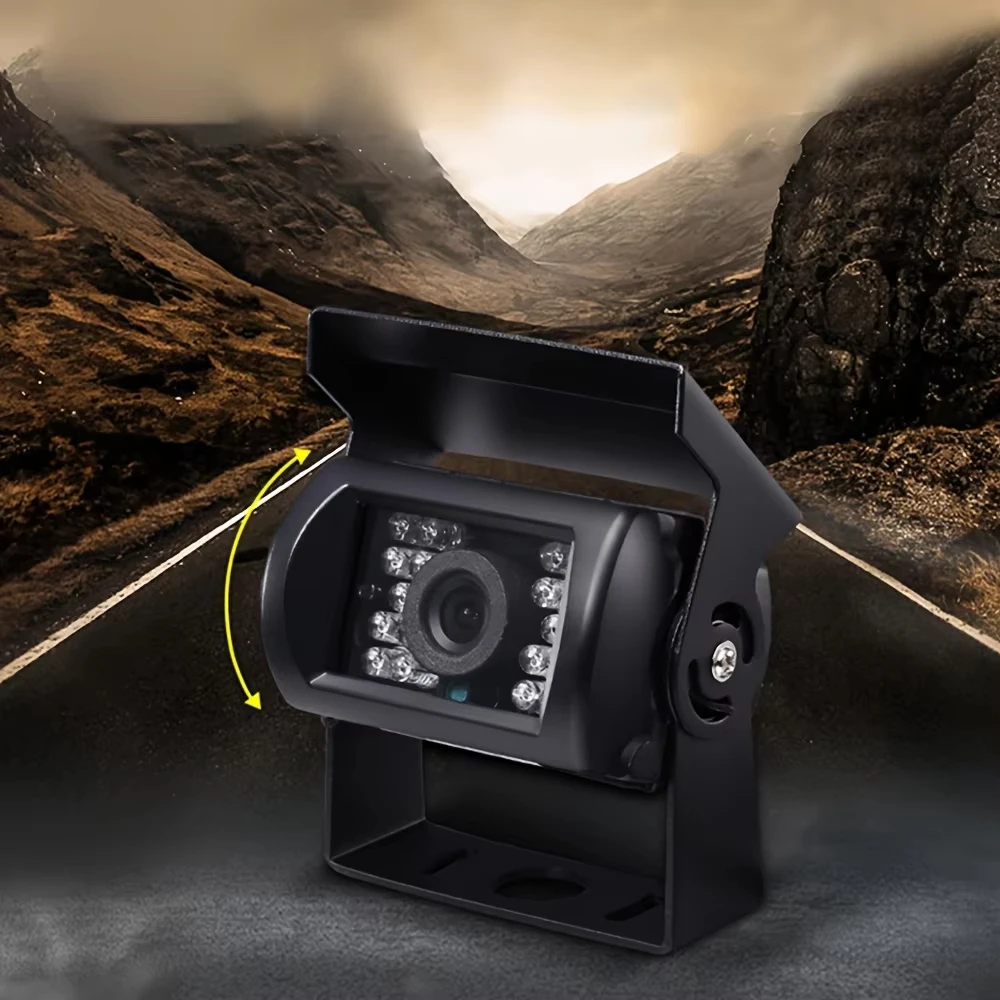

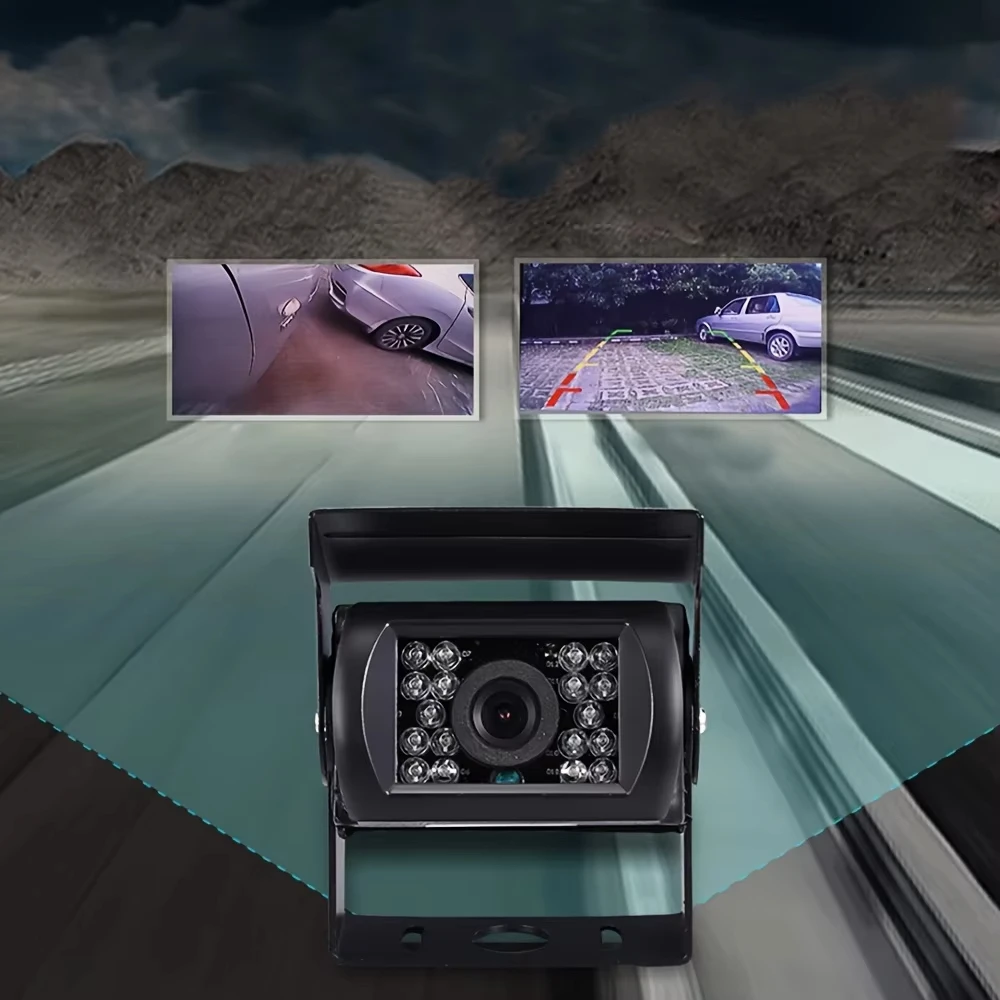

View angle: 120°
Image component: 1/3 Inch Color CCD
TV System: NTSC

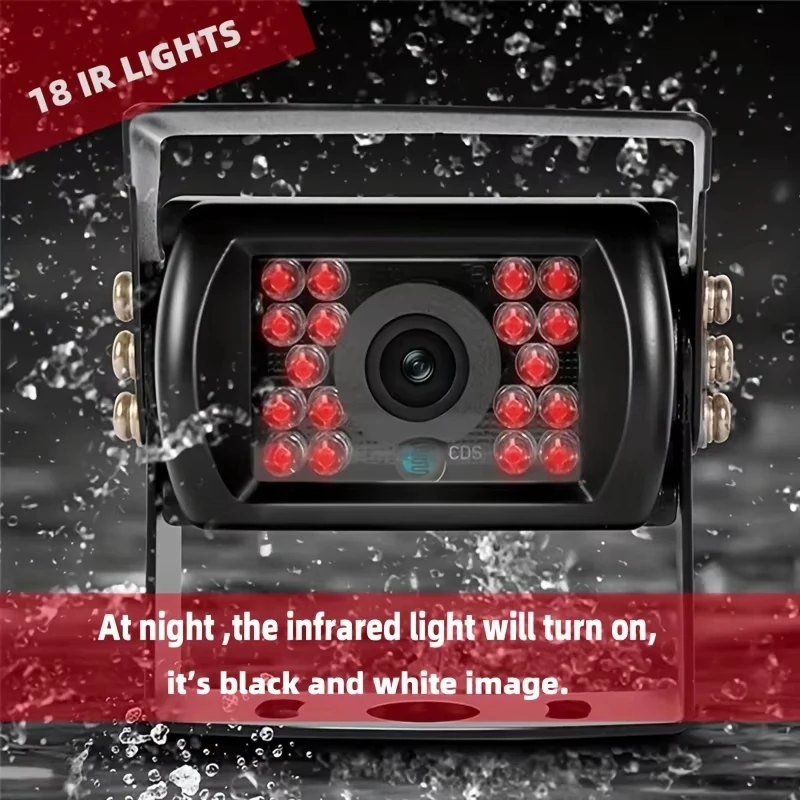

Night Vision: 18 IR LED Lights For night vision
Effective pixels: 728*682 pixels
Horizontal Resolution(TV lines): 600 TV lines
Power Supply: DC 12-24V
Operating Temperature:-40°C~+80°C, RH95% Max

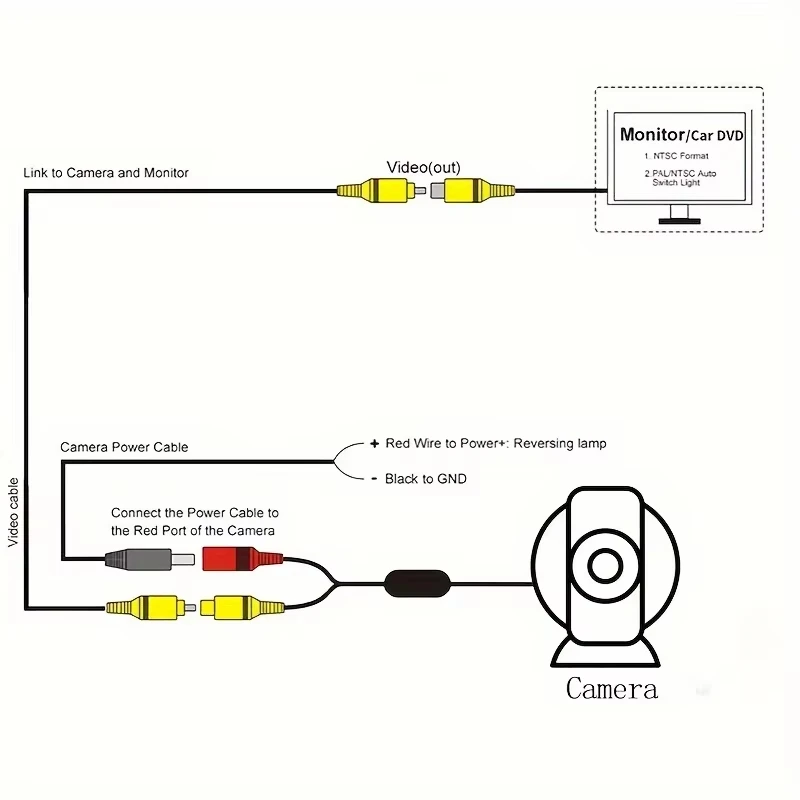

Video Output: RCA connector, 1.0VP-P, 75Ohm
S/N ratio: more than 48db
Displays: TFT-LCD
Resolution: 800 (H) × 480 (V)
Power: ≤ 2W. Ultra-low power consumption, to prevent over heat
Video Input: AV1/AV2 video input
AV2 VCD / DVD video output signal (system default)
AV1 connect reversing camera (automatically switch to reversing)
Signal format: PAL / NTSC / AUTO. Compatible with all signal formats
Contrast: 300:1. A clear contrast
Working Voltage: DC 12VCamera’s Features:
View angle: 120°
Image component: 1/3 Inch Color CCD
TV System: NTSC
Night Vision: 18 IR LED Lights For night vision
Effective pixels: 728*682 pixels
Horizontal Resolution(TV lines): 600 TV lines
Power Supply: DC 12-24V
Operating Temperature:-40°C~+80°C, RH95% Max
Video Output: RCA connector, 1.0VP-P, 75Ohm
S/N ratio: more than 48db

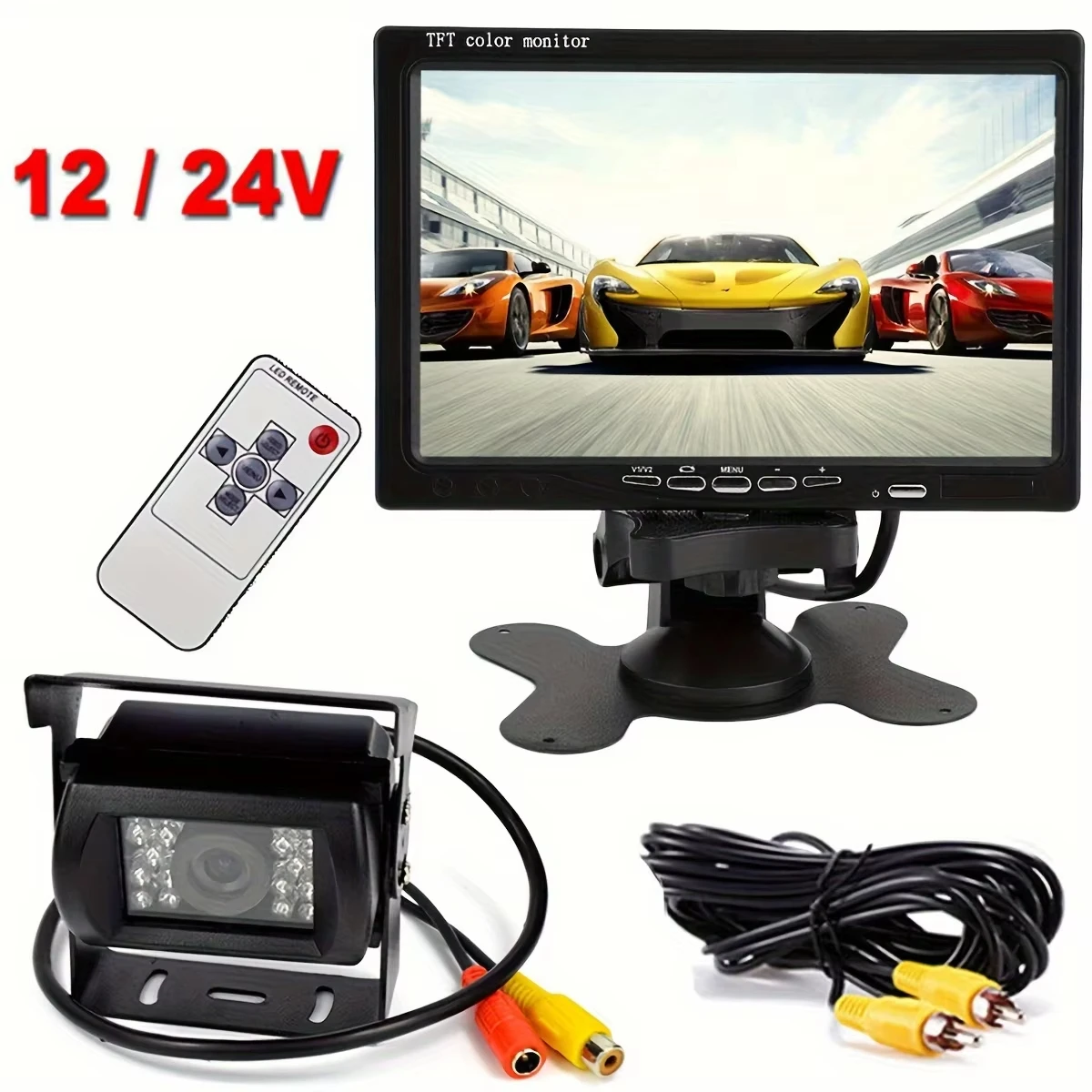

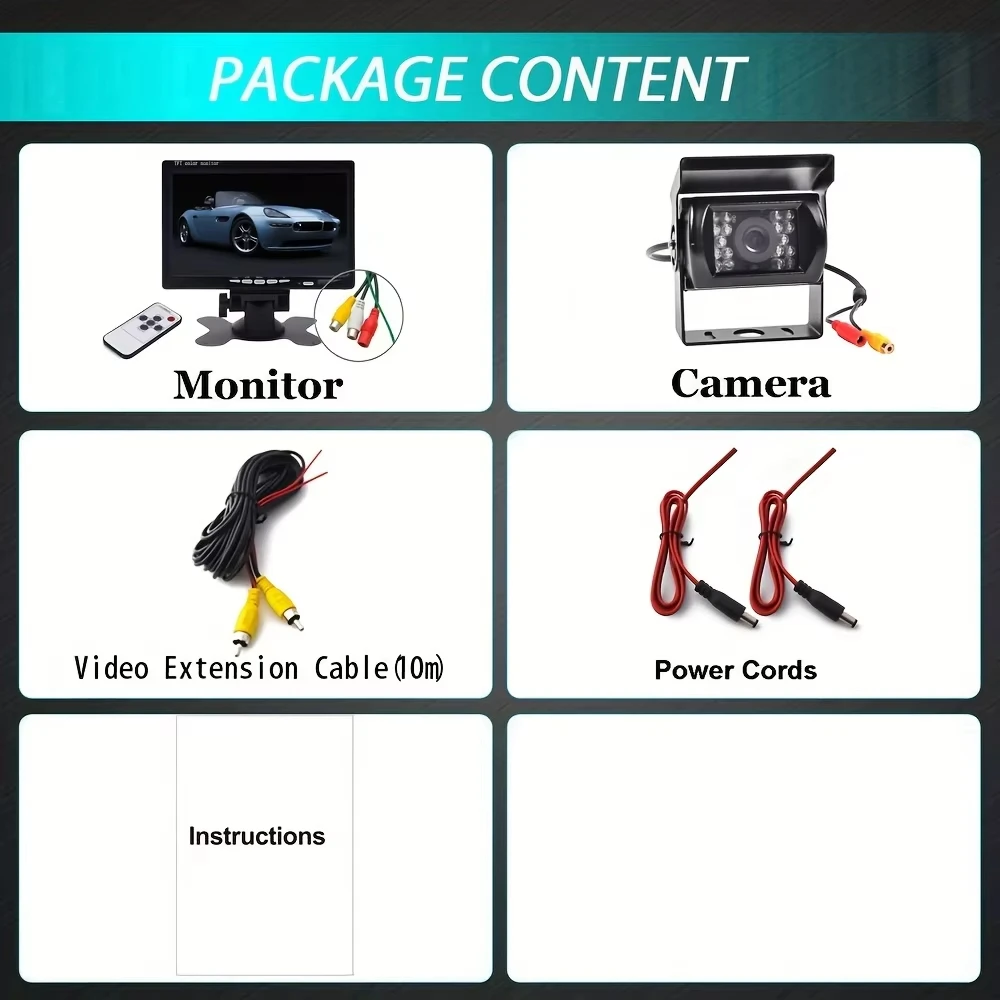

Package Included:

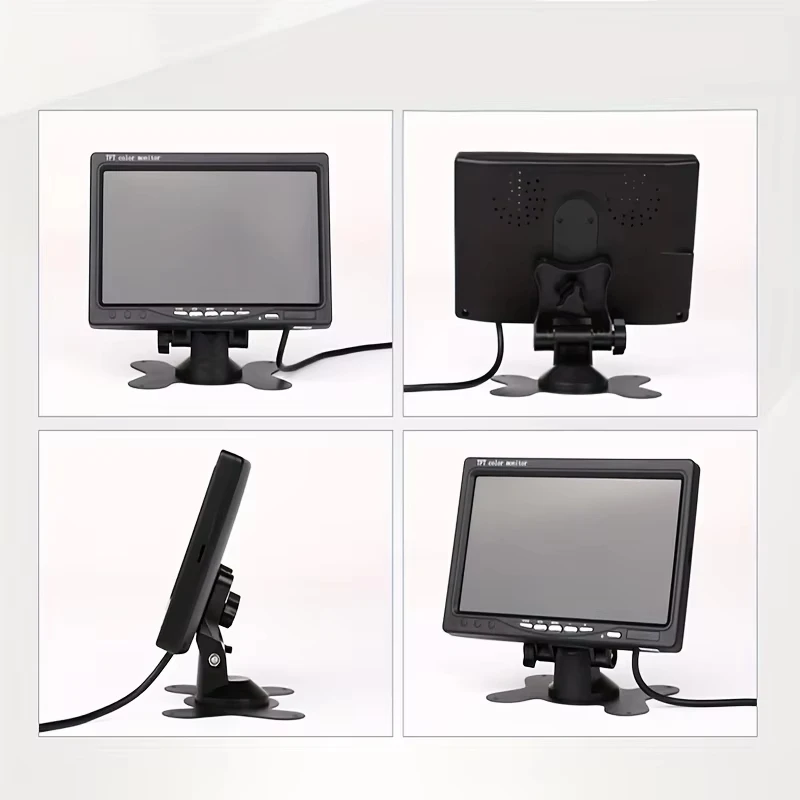

1 x 7” TFT LCD Monitor
1 x Power Harness

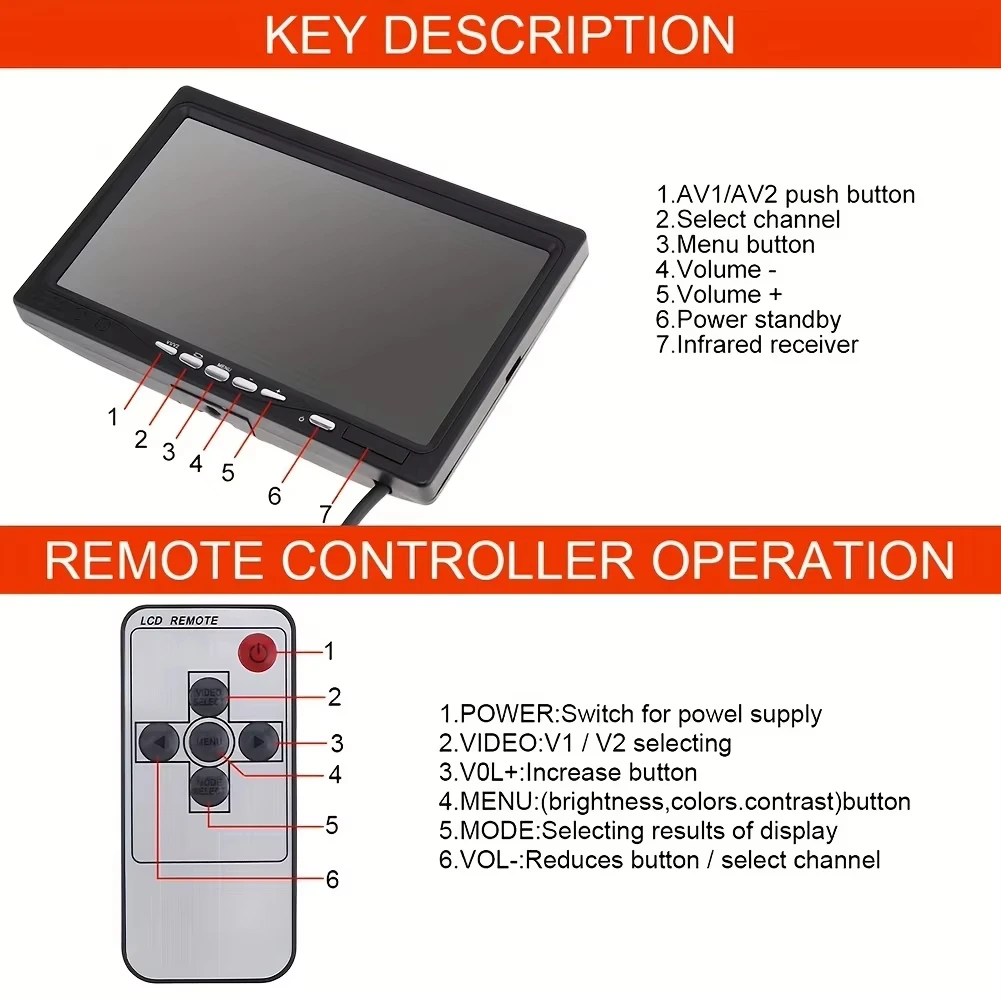

1 x Remote(No Battery Inside)
1 x Rear View Cameras
1 x Power cable
1 x 10m Video Cables
1 x User Manual
