Product Description

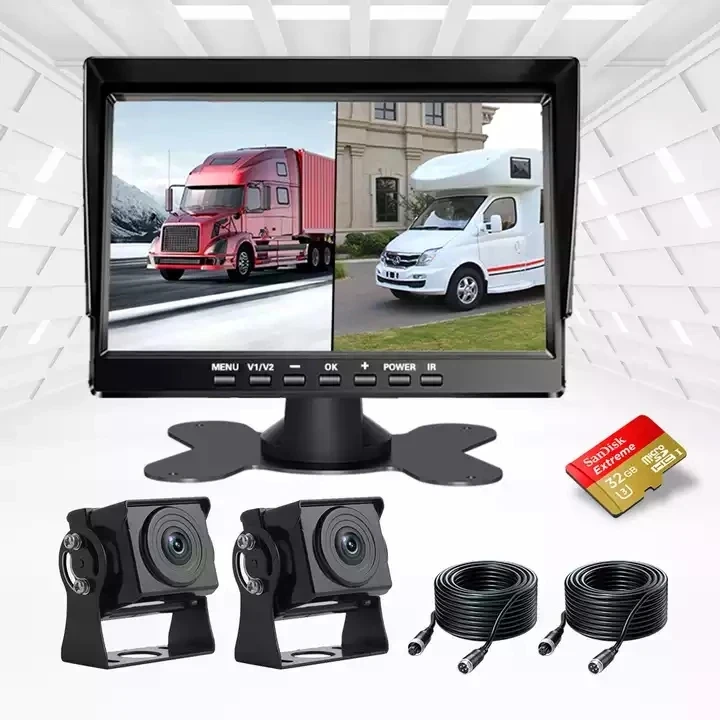

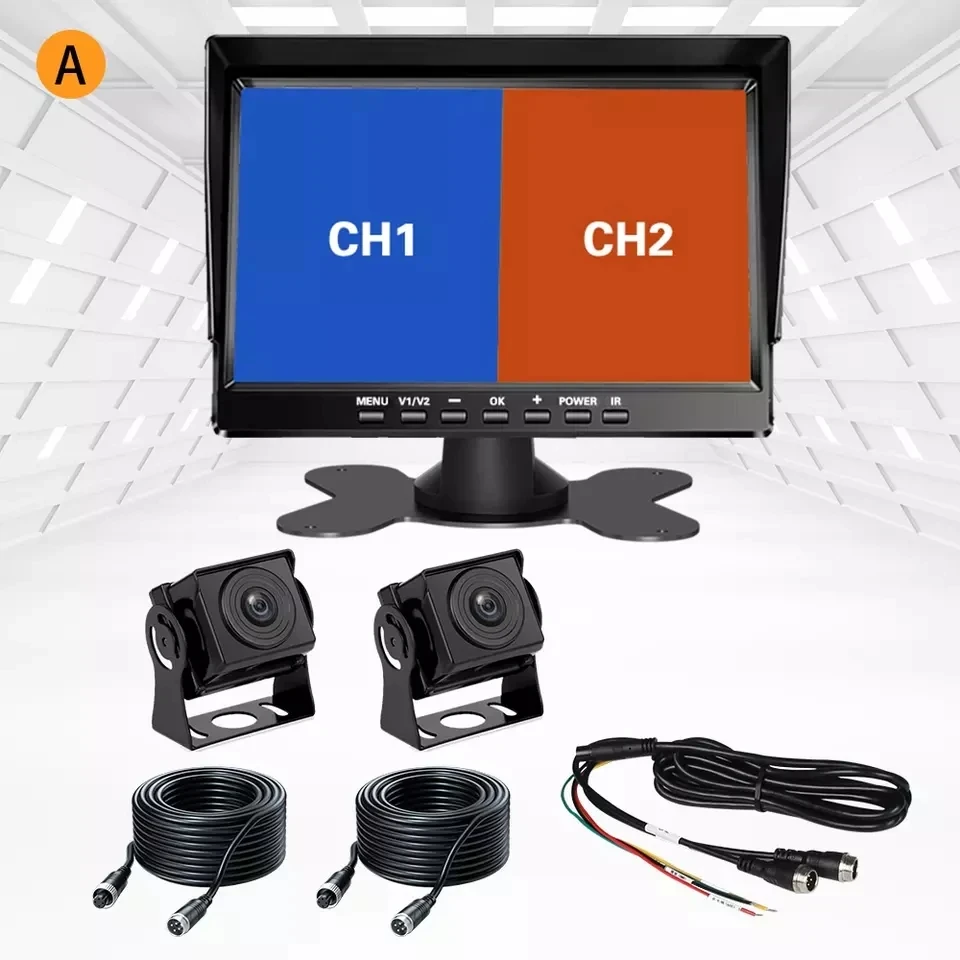

1、two channels AHD 1080 camera

2、Display pixel:1024*600

3、Voltage:12V–24V universal

4、Maximum support for 128G SD card

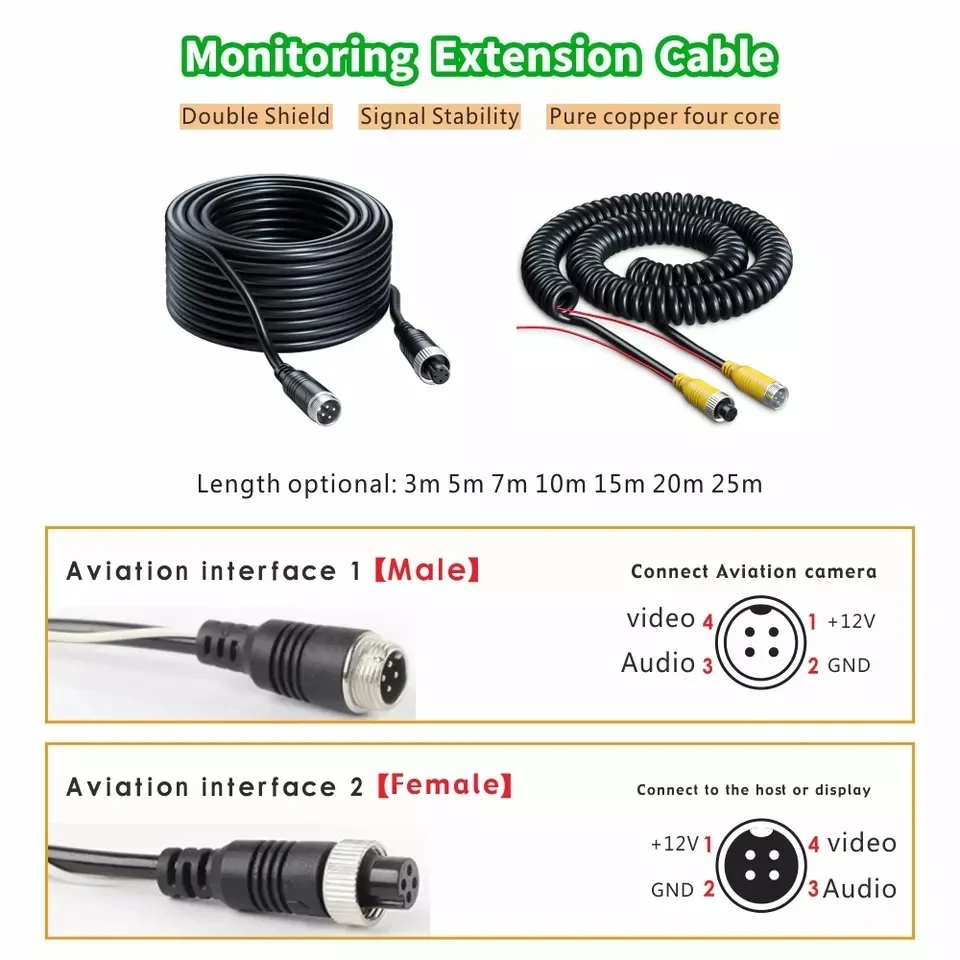

5、4 pin Interface optional，5m video cable*1; 15m video cable*1

6、Digital stable signal:100% No interference, camera signal will stay smooth

7、IP67 waterproof: The highest waterproof level completely makes it work well under damp environment

8、High resolution:1080P recording resolution offer the best viewing experience to you

9、Loop recording: When memory card fills up,it can automatically record over previous video

10、Automatically turn on and record when the engine starts. data protection automatically senses a crash and saves the video files

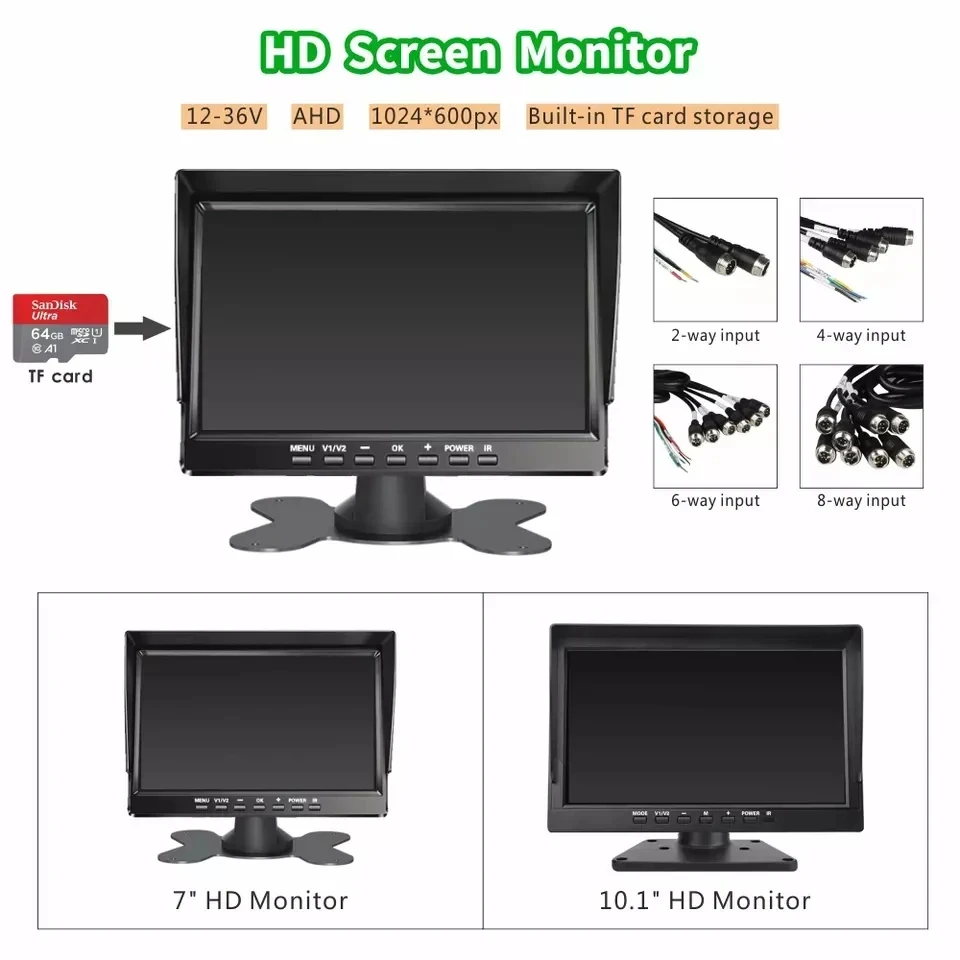

Monitor Specification

7 inch monitor with video function

Voltage: 9-35V

Contrast: 350:1

Brightness: 350cd/m2

Physical Resolution: 1024*600

Signal system: PAL/NTSC

Power supply: DC port

Ratio: 16:9/4:3

Power: About7W

Working temperature: -20~ 50 °C

Storage temperature: -30 ~ 70 °C

2 signal input: AV1/AV2, AV2 reverse priority

Installation: Desktop

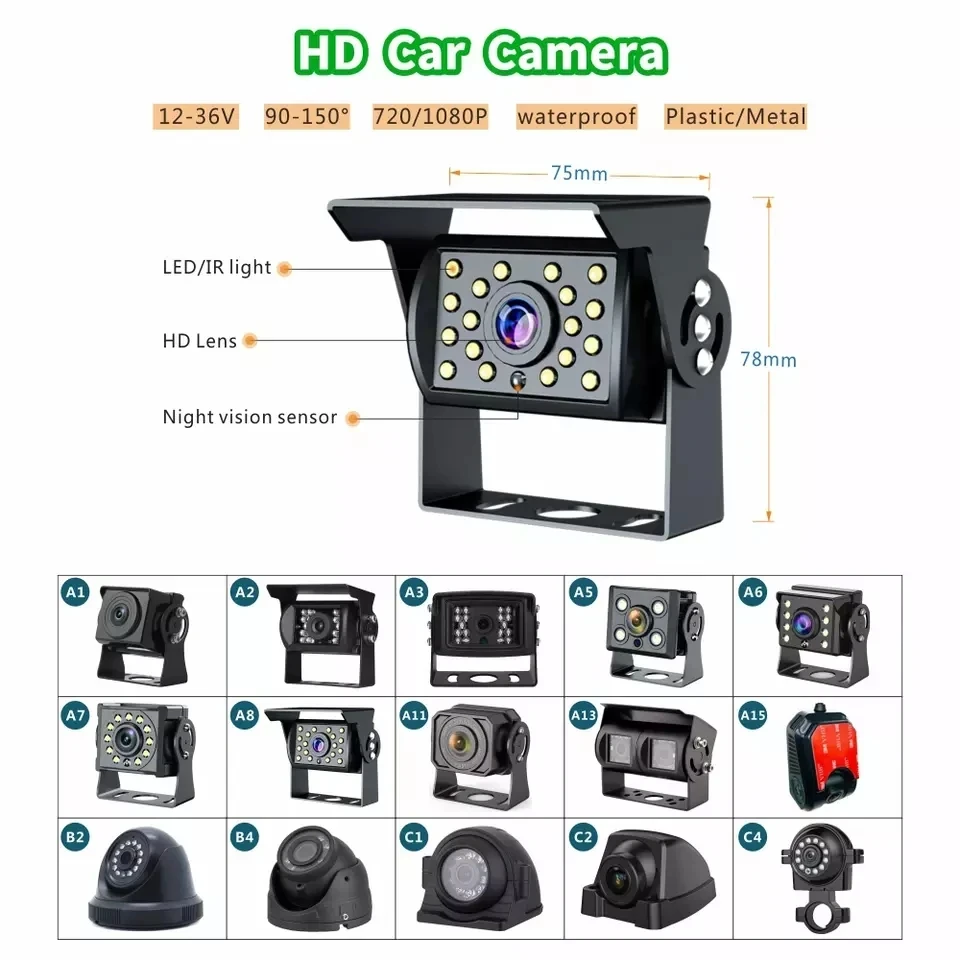

Camera Specification

Format: PAL50HZ

Pixel: 648*488 Pixels

Horizontal resolution:480TVL

Minimum illumination 0.2Lux/F1.8=1.2 (0 Lux with LED)

White balance: Automatic

Waterproof rating: IP67

Viewing angle:100-120 degrees

Signal to noise ratio:>48dB
